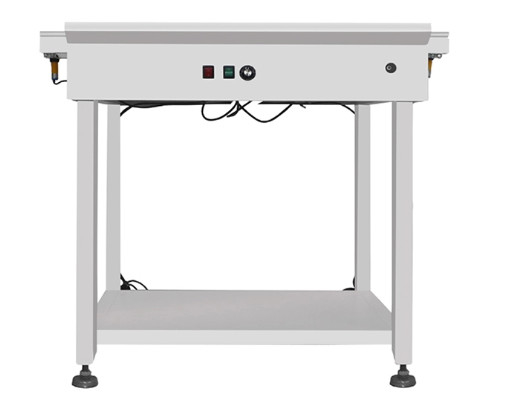

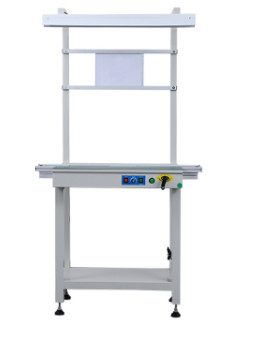

SMT Conveyor Machine, conveyor
HW-J100 Conveyor is used for the connection between SMT and AIl production line.
It can also be used for PCB buffer, inspection, test or manual insertion of electronic components.
1.TBI screw adjusts the track width, which is convenient and accurate.
2.The conveying is stable and there will be no jam.
3. Adjustable speed control.
4. Anti static worktable and lighting device are standard. (optional)
5. The length of guide rail and the number of stop plates can be customized by customers requirements
6. Power supply: single phase 220V 50 / 60Hz 100W
7. Conveying height: 900 ± 20mm
8. Guide rail length: 0.5-1.5M
9. Conveying type: anti-static flat belt
10. Conveying speed: 0.5-400mm/min
Our products are sold all over the world, you can rest assured.
