ODM SMD SMT Chip Shooter Machine Reflow Solder Oven

High quality SMT SMD machine reflow solder oven smt reflow oven

Transfer Method: Drawer Type

PCB Tray: High temperature resistant transparent tray

Accessible height: 40±5mm

Working area:360×300mm

Control Method

Control Mode: PID+Computer

Communication Mode: RS485

Heat Method

Temperature zone: Single zone 16 stage Temp control

Number of temperature control stage: 1~16 stage,which can be set according to actual.

Temp Control Method:Microcomputer automatic temp control, SSR

contactless output

Temp control range: Short time high temperature Max350 ℃, high

temperature resistance, suitable for high temperature soldering

Heater: Ceramic radiant plate

Temp curve: 1~4 Temp curve can be set,each curve is controlled by 16 stage.

Control accuracy: ±5℃

Furnace liner material:8K mirror stainless steel

Cooling System

Cooling Method: Turbocharger suction cooling

Temp Drop slope: 1~3℃/sec

Cooling Pipe: Independent exhaust air duct, with external

exhaust interface as standard

More Details:

Start Power: 2.6kw

Working Power: 1.0kw

Weight: 45kg

Voltage: Single AC,220V,50Hz

Size: 817X504X322mm

porduct description

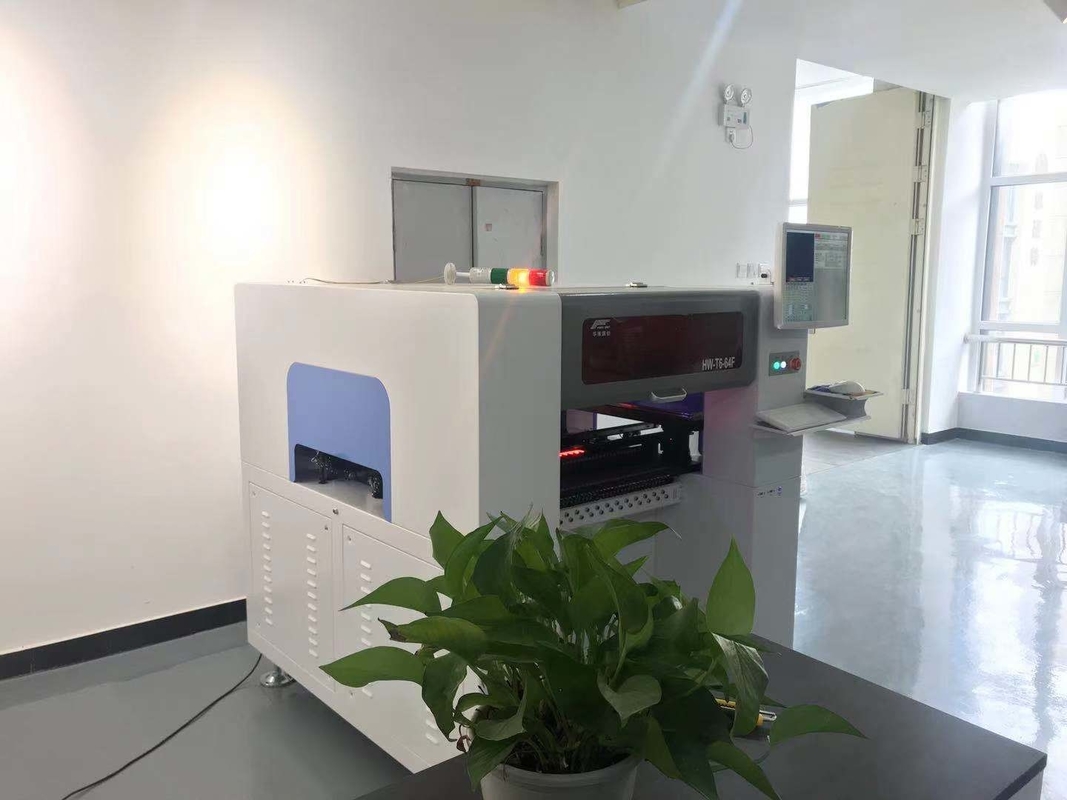

The HW-T4-44/50F is our most popular model with Vision. The HW-T4-44/50F offers technologically advanced features with 260mm x 400mm work area, 50 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.

System Features

* The highest quality with the most advanced equipment at a cost-effective solution

* Placement rates up to 7000 cph

* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...

Vision System

The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation

Feeders

Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
