The mounting head can rise and fall independently, rotate from 0 to 360 degrees, and mount up to 20 mm components.
With the development of intelligent motion control system, visual recognition system, image processing system and other core technologies, our patch techn-ology is becoming more and more mature.
In terms of hardware manufacturing, the core parts are imported brands to ensure more stable, reliable and long-term product performance. After winning a variety of invention patents,utility model patents and software copyright,the current mounting standard has reached the international level.
We not only have a stable customer base in China, but also get more and more favor overseas.
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
porduct

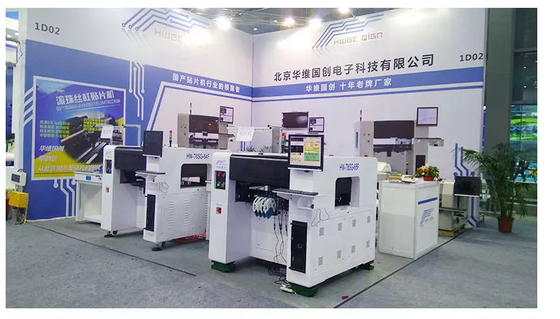

The HW-T8-80F is our most popular model with Vision. The HW-T8-80F offers technologically advanced features with 260mm x 400mm work area, 50 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.
System Features
* The highest quality with the most advanced equipment at a cost-effective solution
* Placement rates up to 7000 cph
* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...
| Placement rates | 13000CPH |
| Accuracy | ± .001” (0.02mm) |
| Voltage | 220AC |
| Weight | 800kg |
| Warranty | 1 year |
| Suppport | Video Support |
| UI | The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes |
| Max no. of Feeders (8mm tape) | Max no. of Feeders (8mm tape) |
| Max Board Size | 260mmX400mm |
| Smallest Component Capability | 201 |
| Vision System | HWGC Vision |
| Vibratory Feeders | Loose, tube, stick (frequency & amplitude control) |
Our products are sold all over the world, you can rest assured.
