Mounting speed of various components(resistance,capacitance,chip)20000 pcs/h.
Pick And Place Machine , Chip Mounter Surface Mounter , Smt Machine
The degree of manual involvement in the proce-ss of programming is less than 15%, most of the work is undertaken by the software part of the machine and completed automatically.
porduct
The HW-T8-80F is our most popular model with Vision. The HW-T8-80F offers technologically advanced features with 260mm x 400mm work area, 50 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.
Vision System
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
| Number of Placement Heads | 8(high-accuracy) |
| Number of IC Trays | 96 |
| Number of Feeders | 120(subject to 8mm feeder) |
| Positioning Accuracy | 0.01mm |
| Repeated Mounting Accuracy | 0.05mm |
| Mounting speed range of resistance | 20000-26000Pcs/h capacitance components |
| Applicable Components | resistor,capacitor,chip,lamp bead 0201-30*30mm etc. |
| Supported Maximum Area of PCB | 50*50mm--340*330mm |
| Feeders | NXTelectric feeder,vibrating feeder, IC tray etc. |
| Recognition Devices | mark camera x2,fast recognition camera x8, high-precision camera x1 |
| Maximum Height of Applicable Components | ≤20mm |
| Recognition Methods | simultaneous recognition with eight heads |
| PCB Convey Mode | three-stage entry,automatic connection from left to right, automatic PCB positioning |
| Mark Positioning | manual / automatic |
| Programming Method | automatic programming after manually importing files of PCB coordinates |
| Control System | HuaweiGuochuang 2021 control system |
| Maximum Step Length of XY Axis | 423mm*734mm(left) 423mm*734mm(right) |

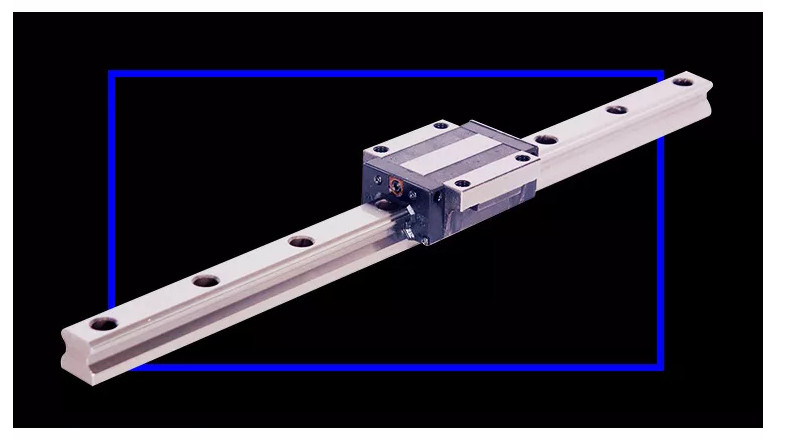

| Tracks of XY Axis | linear motion guide + Screw driver |
| Motion Mode of XY Axis | intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm. |
Our products are sold all over the world, you can rest assured.
