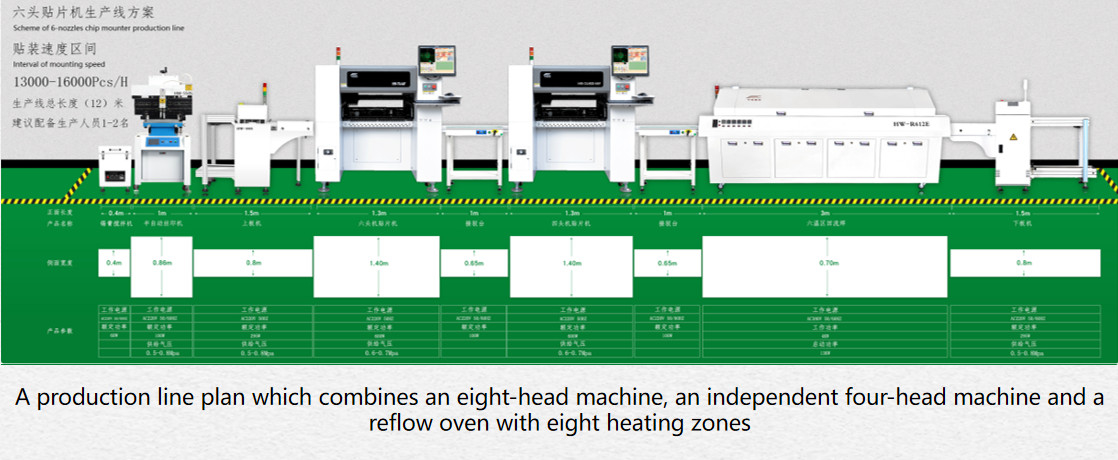

SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable
Based on 6 mounting heads +8 cameras+64 feeder positions+ Panasonic
Servo motor+guide screw, the positioning is highly developed(PRECISION:0.01MM)
SMT PNP Machine can pick 0201, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc. With lead pitch ≥0.3mm (pin center distance 0.5mm) within 40 * 40mm .
Machine is of high quality with at least one-year warranty, lifetime maintenance.
|
|
|
Number of feeders
|
64
|
|
Number of IC tray
|
6
|
|
Number of cameras
|
8
|
|
Number of heads
|
6
|
|
Average power
|
500W
|
|
Positioning precision
|
0.01mm
|
|
The buffer range of suction nozzle
|
4.5mm
|
|
Power supply
|
220V, 50/60Hz
|
|
Compressed air
|
0.5-0.6Mpa
|
|
Drive motor
|
Panasonic servo motor
|
|
Vacuum source of suction nozzle
|
high-speed on-off vacuum generator with vacuum breaker
|
|
Maximum circuit board area
|
600×455mm
|
|
Maximum travel scope in Z axis
|
20mm
|
|
Tape feeder
|
8, 12, 16, 24mm and vibration suction (mounting pipe chip)
|
|
Maximum mounting speed
|
12000 Pcs/h
|
|
Average mounting speed of actual mounting resistance
|
9600Pcs/h
|
|
XYZ drive guide rail
|
TBI high-precision reloading linear guide rail
|
|
Motion drive system
|
Panasonic high-speed DSP drive
|
|
|
full-automatic chip mounter operating system independently
|
|
developed by Huawei Guochuang based on Windows
|
|
operating systemand it supports windows xp
|
|
win7 operating system
|
|
Element angle
|
0-360°, synchronous rotation during movement
|
|
X/Y operation mode
|
intelligent curve of the linear acceleration and deceleration linkage
|
|
MARK point positioning
|
full-automatic (the MARK point can be adjust at will)
|
|
Intelligent alarm
|
automatic correction, automatic filling, feeding shortage alarm
|
|
|
automatic connection from left to right in single sections
|
|
automatic PCB transfer positioning. /plunger positioning
|
|
manual plate feeding.
|
|
Visual display
|
17-inch industrial control display, 4:3, resolution: 1280 x1024
|
Number of recognition cameras
|
One Mark recognition camera, four quick-recognition cameras
|
|
and one precise-recognition camera
|
|
|
|
|
|
Adaptive to 0201, 0402, 0603, 0805, 1206, diode, audion, SOT, QFP
|
|
within 40*40mm and the pin distance ≥0.3mm
|
|
(0.5mm center distance) and BGA
|
|
Product weight
|
500KG
|
|
Dimension
|
1450*1370*1550mm
|
Vision System
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Feeders
Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
