Pneumatic Feeder And Electricial Feeder Were Adopted, Sizes Include 8mm, 12mm, 16mm, 24 Mm,
The HW-T8-80F is our most popular model with Vision. The HW-T8-80F offers technologically advanced features with 260mm x 400mm work area, 80 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.
porduct
The HW-T8-80F is our most popular model with Vision. The HW-T8-80F offers technologically advanced features with 260mm x 400mm work area, 80 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.
System Features
* The highest quality with the most advanced equipment at a cost-effective solution
* Placement rates up to 13000-15000 cph
* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...
| Placement rates | 15000CPH |
| Accuracy | ± .001” (0.02mm) |
| Voltage | 220AC |
| Weight | 800kg |
| Warranty | 1 year |
| Suppport | Video Support |
| UI | The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes |
| Max no. of Feeders (8mm tape) | 80 pcs |
| Max Board Size | 380mmX400mm |
| Smallest Component Capability | 0201 |

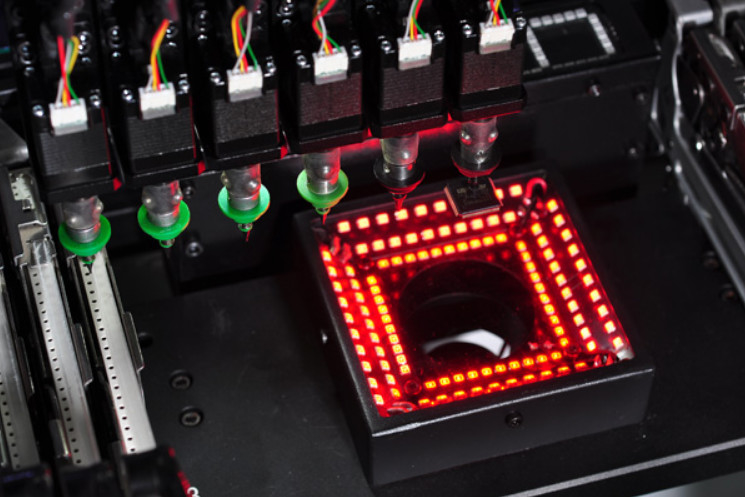

| Vision System | HWGC Vision |
| Vibratory Feeders | Loose, tube, stick (frequency & amplitude control) |
Our products are sold all over the world, you can rest assured.
