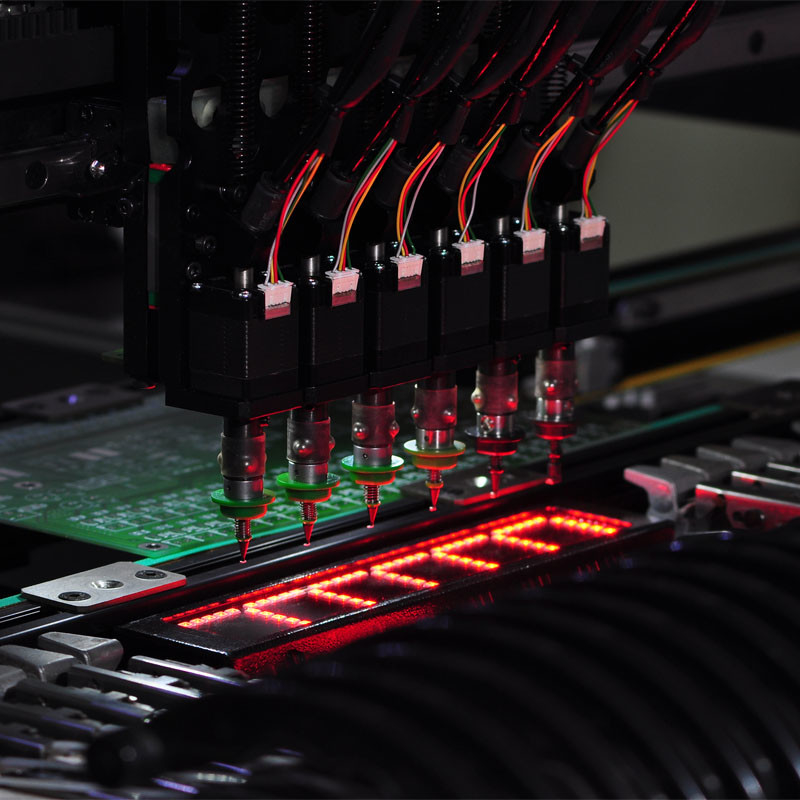

SMT Led Tube Light Assembly Machine Pick And Place 380mmX400mm BGA

HWGC HW-DSQ800-120F with CE Certificate Double Sided SMT Assembly LED Chip Mounter Machine Vision BGA Pick and Place Machine

The highlight of this new device increased Professional mounting chip 500 million pixels High definition imported industrial grade calibration camera as well as 500 million pixel high-definition distortion free industrial visual lens;After technical breakthroughs to improve Can be mounted 40*40mm Within the scope 0.2mm foot spacing(0.5mm center distance) above the chip,The success rate is higher than 98%solve it completely density chip foot as well as BGA chip Difficult to install problem.

porduct description

The HW-DSQ800-120F is our most popular model with Vision. The HW-DSQ800-120F offers technologically advanced features with 260mm x 400mm work area, 120 single feeder positions  where quick setup, easy of operation and high reliability are paramount.

System Features

* The highest quality with the most advanced equipment at a cost-effective solution

* Placement rates up to 25000-26000 cph

* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...

ComponentsThe HW vision System assist allows accurate placement of 0201, BGA, QFN, QFP,LED and a wide range of virtually all SMT components.

Vision System

The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation

Feeders

NXT Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
