High definition camera can meet the visual recognition of components with diameter less than 35mm
Professional imported 5MP industrial calibration HD camera used for mounting chips and its supporting 5MP distortion-free induatrial vision HD lens.

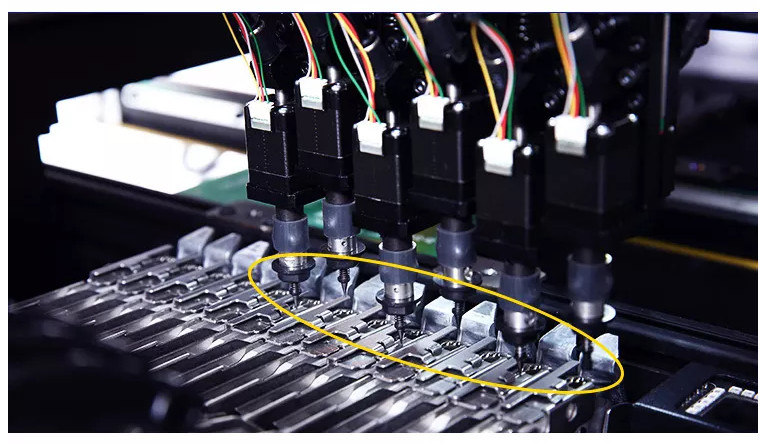

Eight 1MP industrial fast recognition cameras which can incr-ease efficiency significantly by simultaneous recognition of eig-ht placement heads.
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the
machine, pls feel free contact us. We will help you in time.
Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
porduct description
The HW-DSQ800-120F is our most popular model with Vision. The HW-DSQ800-120F offers technologically advanced features with 260mm x 400mm work area, 120 single feeder positions where quick setup, easy of operation and high reliability are paramount.
System Features
* The highest quality with the most advanced equipment at a cost-effective solution
* Placement rates up to 25000-26000 cph
* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...
| |
|
| Placement rates |
26000CPH |
| Accuracy |
± .001” (0.02mm) |
| Voltage |
220AC |
| Weight |
1000kg |
| Warranty |
1 year |
| Suppport |
Video Support |
| UI |
The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes |
| Max no. of Feeders (8mm tape) |
120 pcs |
| Max Board Size |
380mmX400mm |
| Smallest Component Capability |
0201 |
| Vision System |
HWGC Vision |
| Vibratory Feeders |
Loose, tube, stick (frequency & amplitude control) |
| |
|
The HW vision System assist allows accurate placement of 0201, BGA, QFN, QFP,LED and a wide range of virtually all SMT components.
Vision System
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Feeders
NXT Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
