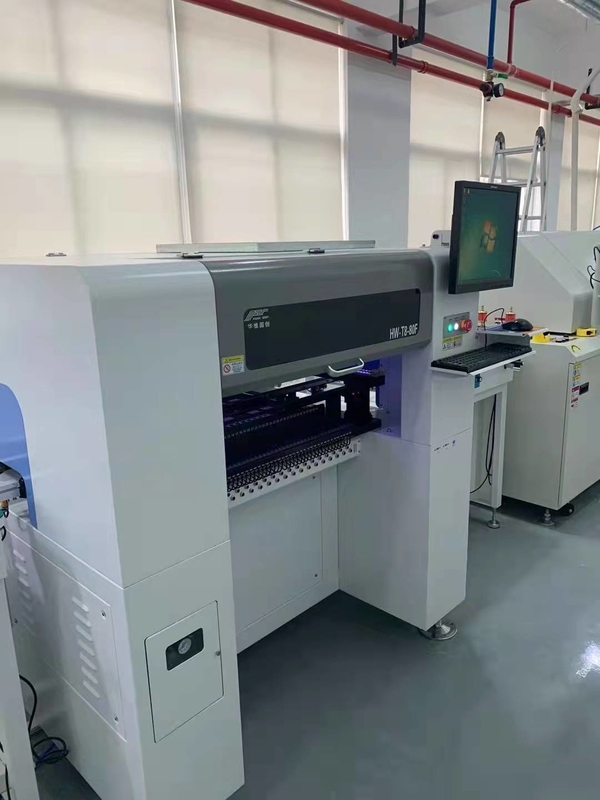

Name: Small PCB Pick And Place Machine / HWGC Led Assembly Machine 20000pcs/H
Brand: HWGC
SKU: HW-DSQ800-120F
Price: 24500 USD
Availability: InStock
Rating: 4.5 (114 reviews)

Promotions DSQ800-120F Small Pick And Place Machine Small Automatic LED Pick And Place Machine Equipped Servo Motor +11

The HW-DSQ800-120F is our most popular model with Vision. The HW-DSQ800-120F offers technologically advanced features with 260mm x 400mm work area, 120 single feeder positions where quick setup, easy of operation and high reliability are paramount.

SMT Table top Pick and Place Machine

Benchtop Pick and Place Machine GP400
Computer control system
The SMT placement machine is generally equipped with computer monitor and mouse. It supports XP and Windows 7. It enables visual programming and PCB file import because of the humanized operating system.

Automatic PCB loader
The SMT placement machine can directly put the printing finished PCB board onto the track to realize automatic board loading, aiming and placing and mounting. It supports multi-feeders: maximum 50 feeders. The size of standard IC tray, tube feeder, stick feeder can be adjustable.

Synchronous identification by four sets of cameras
The SMT placement machine is equipped with 6 cameras: one MARK, one high precision camera and 4 high-speed cameras. It can realize 4-head synchronous identification to ensure the speed and precision of mounting. The standard configuration is 16 JUKI high precision suction nozzles.

Servo system
The SMT placement machine is equipped with servo system imported from Panasonic, Japan with high precision and stability to ensure 24-hour stable mounting.

Chain
It adopts high pressure resistant and wear-proof drag chain which is the same type as the one of imported machines. The drag chain can bear thousands of times of proof pressure.

Track

It adopts high precision track from TBI Taiwan which has low noise and high precision to ensure the accuracy rate of BGA chips.

Conveyor

This SMT placement machine can be automatically connected to conveyor which can transport the PCB board to the SMT reflow soldering machine without manual assistant, thus saving labor cost.

Technical Parameter:

Specification
Number of feeders	50
XYZ Drive Guide Rail	High-precision heavy-duty straight-line guide rail
Number of cameras	6
Number of heads	4
Average power	400W
PCB board into	automatic board
Guide	Screw guide
Maximum mounting speed	9500 Pcs/h
Average mounting speed of actual mounting resistance	8000Pcs/h
Mounter Precision range	0201-40 * 40 mm, 0.3 mm pin spacing chips
Maximum travel scope in Z axis	20mm
Maximum circuit board area	400×200mm
Positioning precision	0.01mm
The buffer range of suction nozzle	4.5mm
Weight	300KG
Dimension	9001140900mm
Power supply	220V, 50/60Hz or 110V
Compressed air	0.6-0.7Mpa
Drive motor	Panasonic servo motor
Motion drive system	Panasonic high-speed DSP drive
Recognition mode	Simultaneous recognition of four heads
Vacuum source of suction nozzle	High-speed on-off vacuum generator with vacuum breaker
Operating system	Full-automatic chip mounter operating system operating system.
	Independently developed by us based on Windows operating system
	Supports windows xp, win7
Element angle	0-360°synchronous rotation during movement
X/Y operation mode	Intelligent curve of the linear acceleration and deceleration linkage
MARK point positioning	Full-automatic (the MARK point can be adjust at will)
Intelligent alarm	Automatic correction, automatic filling, feeding shortage alarm
Plate entering mode	Automatic connection from left to right in single sections
Plate entering mode	Automatic PCB transfer positioning/plunger positioning, manual plate feeding
Visual display	17-inch industrial control display, 4:3, resolution: 1280 x1024
Number of recognition cameras	One Mark recognition camera, four quick-recognition cameras
Number of recognition cameras	One precise-recognition camera.
Adaptive mounting scope	Adaptive to 0201 0402, 0603, 0805, 1206, diode, audion, SOT, QFP
Adaptive mounting scope	Within 40*40mm and the pin distance ≥0.3mm

1) 120pcs 8mm material stations support NXT electric feeder, 12mm, 16mm, 24mm, 32mm and 44mm NXT electric feeder,,vibration feeder and IC trays.

2) NXT electric platform specification: 8mm-44mm NXT electric feeder, electric feeder stable feeding, high precision, long service life.

8 groups of independent mounting heads - 8 groups of mounting heads are distributed with different nozzles, which are suitable for the mounting requirements of products with more specifications.

1) 8 groups of mounting heads can realize the double arms and four heads pick simultaneously,pick up the material at same time, The picking efficiency is improved greatly.

2) The mounting head can rise and fall independently, rotate from 0 to 360 degrees, and mount up to 20 mm components.

3) The z-axis can rise and fall independently according to the thickness of the components,For the resistance and capacitance components, the mounting head can realize the fly visual identification, High components can be mounted at reduced speed.

4) It can meet the requirements of different sizes of components, different specifications and different packages, achieve diversity, one-time placement.

FAQ

Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.

Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.

Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the
machine, pls feel free contact us. We will help you in time.

Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
