PCB Soldering SMT Assembly Equipment OEM Semi Automatic Pick And Place Machine

PCB Soldering SMT Assembly Equipment OEM Semi Automatic Pick And Place Machine

  • High Light

    PCB SMT Assembly Equipment

    ,

    26000Pcs/h SMT Assembly Equipment

    ,

    OEM Semi Automatic Pick And Place Machine

  • Number Of Head
    8
  • Number Of Feeder
    120
  • PCB Requires
    3-5mm Process Edge In Automatic Mode
  • Cable
    Durable Flexible Cable(10 Million Times)
  • Range Of Mounting Speed
    20000-26000Pcs/h
  • Place of Origin
    CHINA
  • Brand Name
    HWGC
  • Model Number
    HW-DSQ800-120F
  • Minimum Order Quantity
    1
  • Price
    24500-24800$
  • Delivery Time
    8 work day
  • Payment Terms
    T/T

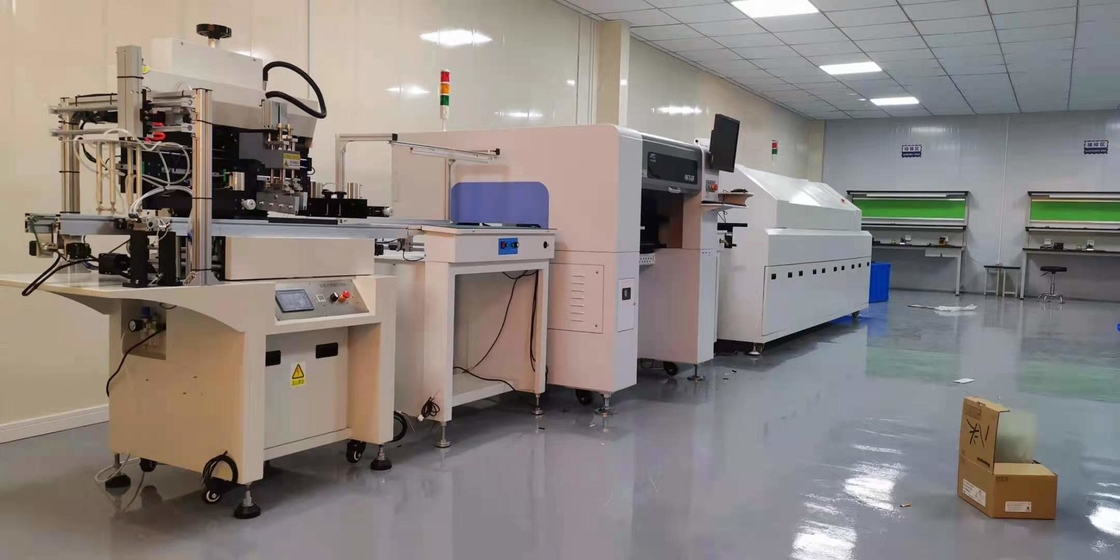

PCB Soldering SMT Assembly Equipment OEM Semi Automatic Pick And Place Machine

Visual Position Placement PCB Soldering Machine LED Smt Assembly Machine HW-DSQ800-120F For PCB Board AssemblyOur Advantages

The highlight of this new device increased Professional mounting chip 500 million pixels High definition imported industrial grade calibration camera as well as 500 million pixel high-definition distortion free industrial visual lens;After technical breakthroughs to improve Can be mounted 40*40mm Within the scope 0.2mm foot spacing(0.5mm center distance) above the chip,The success rate is higher than 98%solve it completely density chip foot as well as BGA chip Difficult to install problem.



Part List

1. Pick and place machine:1 Set
2. IC fixed support:4 Sets(Four M5*8,Four M5*20 screw)
3. JUKI nozzle: 20PCS(502*4,503*6,504*6,505*3,506*1)
4. Solid calibrate nozzle:8 PCS
5. Power wire:1 PC(A machine external power supply)
6. Fixed foot:4 PCS(Three coats)
7. The keyboard and mouse:1 Set
8. Nozzle calibration inkpad: 1 box
9. Lubricant:1 PC
10. I3 industrial control PC (with key):1 Set
11. 17 inch display:1 Set (Display*1, VGA line*1, power line*1)
12. B racket:2 Sets(Display bracket*1 keyboard and mouse bracket*1)
13. Conveyor connection line:2 Pcs
14. Camera parameter adjustment line:1 PC(Plug*3)
15. Handle:2 PCS(M4*6 screw*6)
16. eal ring of feeder:10 PCS


Specification
Number of feeders
80
Number of IC tray
8
Number of cameras
10
Number of heads
8
Average power
1000W
Automatic board
Three-stage track
Guide
Screw guide
Maximum mounting speed
15000 Pcs/h
Average mounting speed of actual mounting resistance
12000 Pcs/h
Maximum travel scope in Z axis
20mm
Maximum circuit board area
500×455mm
Positioning precision
0.01mm
The buffer range of suction nozzle
4.5mm
Weight
600KG
Dimension
1420*1370*1350mm
Power supply
110V/220V, 50/60Hz
Compressed air
0.5-0.6Mpa
Drive motor
Panasonic servo motor
Motion drive system
Panasonic high-speed DSP drive
Recognition mode
Simultaneous recognition of eight heads
Vacuum source of suction nozzle
High-speed on-off vacuum generator with vacuum breaker



Operating system
Full-automatic chip mounter operating system operating system.
Independently developed by us based on Windows operating system
Supports windows xp, win7
Element angle
0-360°synchronous rotation during movement
X/Y operation mode
Intelligent curve of the linear acceleration and deceleration linkage
MARK point positioning
Full-automatic (the MARK point can be adjust at will)
Intelligent alarm
Automatic correction, automatic filling, feeding shortage alarm


Plate entering mode
Automatic connection from left to right in single sections
Automatic PCB transfer positioning/plunger positioning, manual plate feeding
Visual display
17-inch industrial control display, 4:3, resolution: 1280 x1024

Number of recognition cameras
One Mark recognition camera, four quick-recognition cameras
One precise-recognition camera.


Adaptive mounting scope
Adaptive to 0201 0402, 0603, 0805, 1206, diode, audion, SOT, QFP
Within 40*40mm and the pin distance ≥0.3mm (0.5mm center distance) and BGA.
