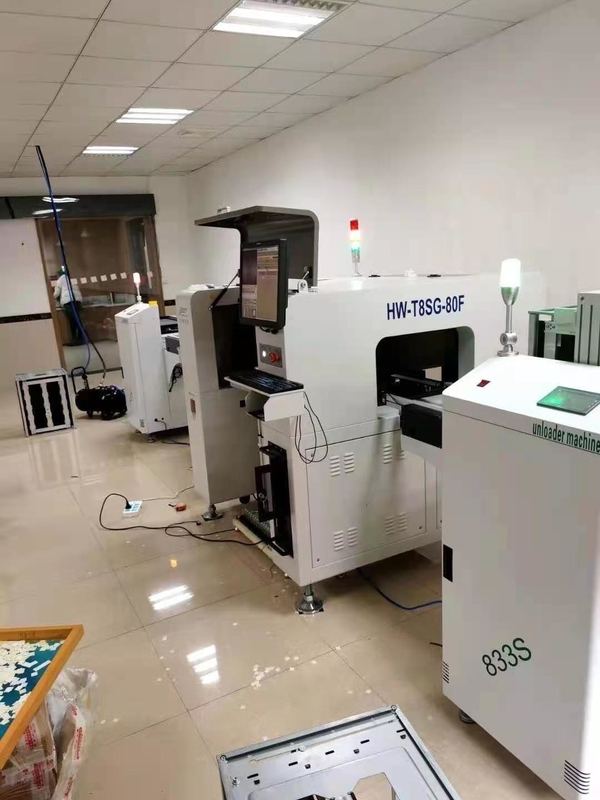

LED lamp/bulb manufacturing smt machine line smt pick and place machine smd placement machine
Full Automatic smt pick and place machine: full autoamtic work type,s :suitable for all smt / smd components pcb; and led driver smt chips pick and place; all led lamps: led tube, led bulb, led panel, led downlight, led strip... all led lamp pcb mounting.
No need worker to put pcb in and take pcb out---Save worker!
Machine no need stop during change pcb---High efficiency!
Export to Europe market--- High quality!
Have 8 visual cameras can placement driver smt componets----High accuracy!
Good price compare with other expensive brand--- Cost-effective!
Factory with R & D deparment, can custom made by customer different demands---Individual solution!
|
|
|
Number of Placement Heads
|
8(high-accuracy)
|
|
Number of iC Trays
|
96
|
|
Number of Feeders
|
120(subject to 8mm feeder)
|
|
Positioning Accuracy
|
0.01mm
|
|
Repeated Mounting Accuracy
|
0.02mm
|
|
Range of Mounting Speed
|
20000-26000Pcs/h
|
|
Applicable Components
|
resistor.capacitor.chip.lamp bead etc.
|
|
Supported Maximum Area of PCB
|
340*560mm
|
|
Control System
|
HuaweiGuochuang 2021 control system
|
|
Maximum Step Length of XY Axis
|
423mm*734mm(left)423mm*734mm(right)
|
|
Tracks of XY Axis
|
four linear motion quide + four ground ball screw
|
|
Motion Mode of XY Axis
|
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm
|
|
Control Computer
|
industrial control computer with intel high-performance processor
|
|
Adjusting Method of Tracks
|
electric
|
|
|
4.5mm
|
|
Maximum Step Length of Z Axis
|
50mm
|
|
Range of Angle for Components
|
士180°
|
|
|
1500W
|
|
Machine Dimensions
|
1740*1360*1440mm
|
|
Weight
|
1100Kg
|
FAQ
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the
machine, pls feel free contact us. We will help you in time.
Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
