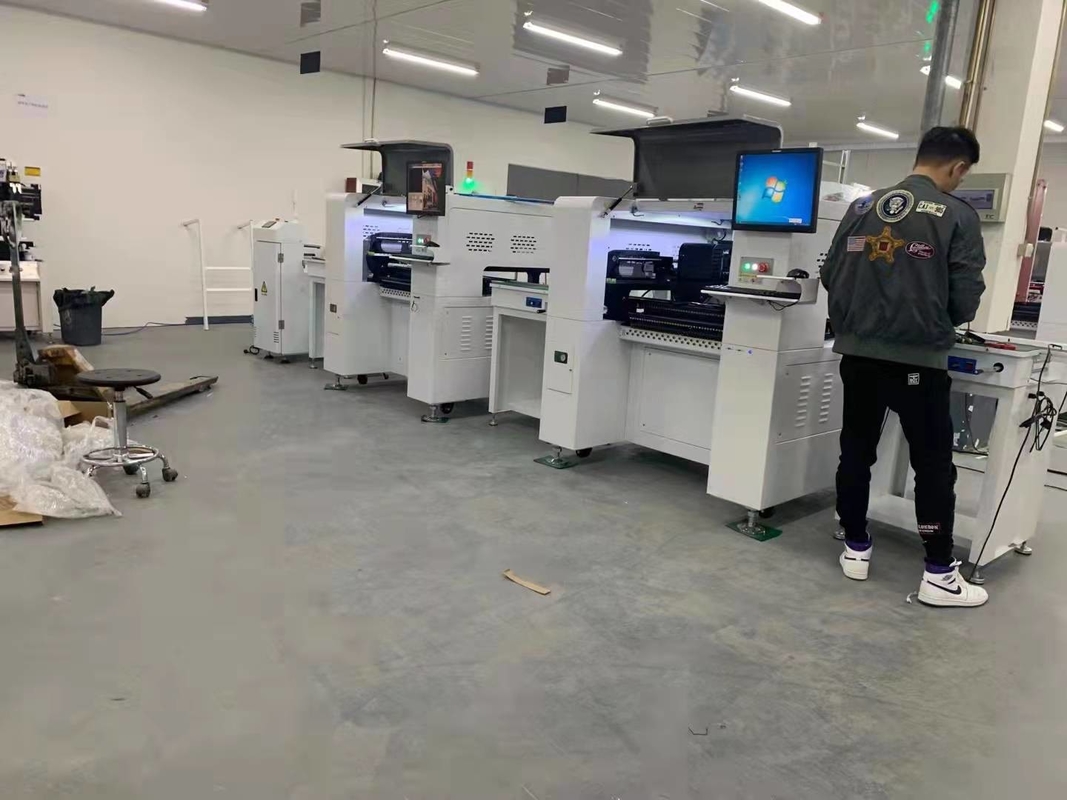

Online 8 Heads Multi-functional SMD Pick And Place Machine HW-DSQ800-120F With Vision Camera Assembly Line
Beijing HuaweiGuochuang Electronic Technology Co. Ltd. is a Chinese high-tech enterprise with inte-grated research and development
(R&D), producti-on and sales operations. The pick and place machi-ne, SMT's main equipment, is our key research and development
equipment.
Our vision is to become an enterprise which ma-kes cost-effective domestic pick and place machine of our own and we intend to
break the current situ-ation of international monopoly.
We have maintained the philosophy of being pa-triotic, pragmatic, innovative as well as serving the society. The products of pick
and place machine on sale are not only appreciated by small and medium-sized enterprises at home, but also very well receiv-ed by
consumers abroad.
|
Number of feeders
|
50
|
|
Number of IC tray
|
6
|
|
Number of cameras
|
6
|
|
Number of heads
|
4
|
|
Average power
|
400W
|
|
Positioning precision
|
0.01MM
|
|
The buffer range of suction nozzle
|
4.5MM
|
|
Power supply
|
220V, 50/60Hz
|
|
Compressed air
|
0.5-0.6Mpa
|
|
Drive motor
|
Panasonic servo motor
|
|
Vacuum source of suction nozzle
|
high-speed on-off vacuum generator with vacuum breaker
|
|
Maximum circuit board area
|
600X455mm
|
|
Maximum travel scope in Z axis
|
20MM
|
|
Operating system
|
full-automatic chip mounter operating system independentlydeveloped by Huawei Guochuang based on Windows
operating systemand it supports windows xp
win7 operating system
|
|
Element angle
|
0-360°, synchronous rotation during movement
|
|
X/Y operation mode
|
intelligent curve of the linear acceleration and deceleration linkage
|
|
MARK point positioning
|
full-automatic (the MARK point can be adjust at will)
|
|
Intelligent alarm
|
automatic correction, automatic filling, feeding shortage alarm
|
|
Plate entering mode
|
automatic connection from left to right in single sectionsautomatic PCB transfer positioning. /plunger positioning
manual plate feeding.
|
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the
machine, pls feel free contact us. We will help you in time.
Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
