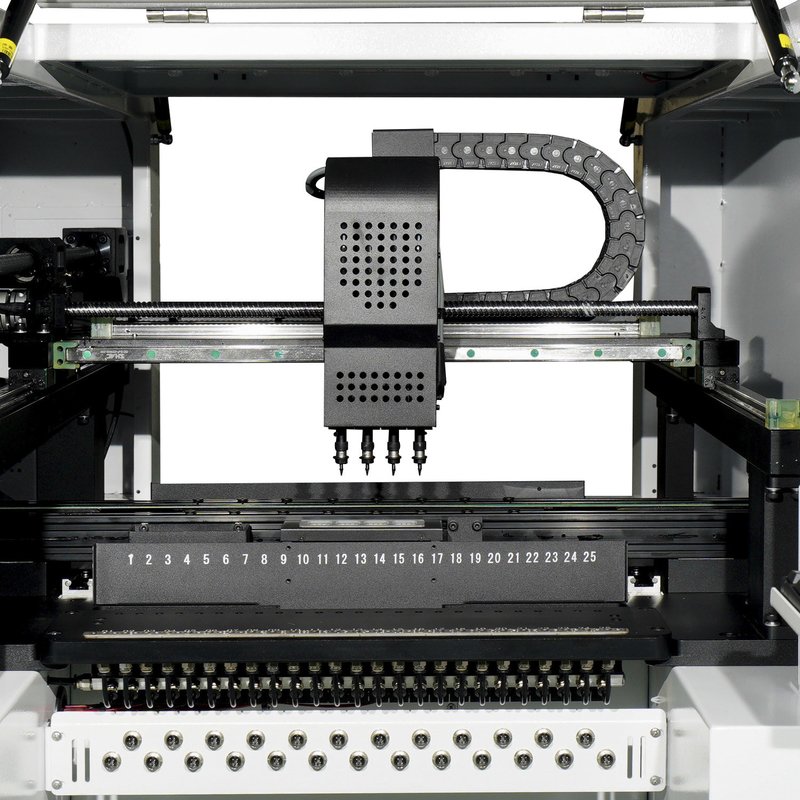

HWGC High speed HW-DSQ800-120F pick and place machine Smt pcb production assembly pasted 0201 BGA smt aoi machine
8 groups of independent mounting heads - 8 groups of mounting heads are distributed with different nozzles, which are suitable for the mounting requirements of products with more specifications.
1) 8 groups of mounting heads can realize the double arms and four heads pick simultaneously,pick up the material at same time, The picking efficiency is improved greatly.
2) The mounting head can rise and fall independently, rotate from 0 to 360 degrees, and mount up to 20 mm components.
3) The z-axis can rise and fall independently according to the thickness of the components,For the resistance and capacitance components, the mounting head can realize the fly visual identification, High components can be mounted at reduced speed.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
|
Applicable Components
|
resistor.capacitor.chip.lamp bead etc.
|
|
Supported Maximum Area of PCB
|
340*560mm
|
|
Feeders
|
NXT electric feeder,vibrating feeder, IC tray etc
|
|
Recognition Devices
|
mark camera x2,fast recognition camera x8. high-precision camera x1
|
|
Maximum Height of Applicable Components
|
≤20mm
|
|
Recognition Methods
|
simultaneous recognition and picking with eight heads
|
|
PCB Convey Mode
|
three-stage entry automatic connection from left to right, automatic PCB positioning
|
|
Mark Positioning
|
manual/automatic
|
|
Programming Method
|
automatic programming after manually importing files of PCB coordinates
|
|
Control System
|
HuaweiGuochuang 2021 control system
|
|
Maximum Step Length of XY Axis
|
423mm*734mm(left)423mm*734mm(right)
|
|
Adjusting Method of Tracks
|
electric
|
|
|
4.5mm
|
|
Maximum Step Length of Z Axis
|
50mm
|
|
Range of Angle for Components
|
士180°
|
|
Motor
|
Panasonic AC Servo Motor MINAS A6 series
|
|
Driver
|
Panasonic high-speed DSP driver
|
|
Air Supply Requirements
|
oil water filter,> 60L dust filter and air pressure stabilizer etc
|
|
Vision Display
|
17-inch industrial control display
|
|
|
German lgus durable flexible cable(10 million times)
|
|
Power Supply
|
220V 50/60Hz
|
|
|
1500W
|
|
Machine Dimensions
|
1740*1360*1440mm
|
|
Weight
|
1100Kg
|
1. Applications
The SMT machine is widely used in electronics manufacturing industries for various applications including:
- LED lighting assembly
- Electronic product assembly
- Telecommunications devices
- Automotive electronics
- Medical devices
- Consumer electronics
- Aerospace and defense
2. PCB Assembly
The HuaWei GuoChuang SMT Machine is designed to handle a wide range of PCB assembly tasks. It provides high-speed mounting of SMD components, such as resistors, capacitors, ICs, and LEDs, on PCBs. The machine also allows for precise positioning, inspection, and soldering of the components, ensuring high-quality assembly results.
3. Quality Control
The SMT machine is equipped with advanced inspection tools such as AOI and SPI systems to ensure the quality of the electronic assembly. The machine also has a built-in camera system for real-time monitoring and automatic error detection during the assembly process.
4. Productivity
The HuaWei GuoChuang SMT Machine is designed to achieve high productivity for electronic manufacturers. It can achieve a placement speed of up to 30000CPH, minimizing downtime and maximizing production. Additionally, the machine’s high accuracy and precision allow for consistent and reliable results during the assembly process.
5. Energy Efficiency
The SMT machine is energy-efficient, designed to save energy use and reduce carbon emissions. It is equipped with energy-saving technology, such as automatic power-off for idle devices, reducing energy consumption while boosting the machine’s lifespan.
6. Maintenance
The SMT machine is easy to maintain, thanks to its superior design and excellent user interface. The machine has a self-diagnosis function and automatic calibration, making it easy to detect and fix problems quickly. Additionally, the machine’s software automatically updates, ensuring it always uses the latest programming available.
