HW-T4-44/50F Get fast and precise assembly results with powerful SMT pick and place machinery

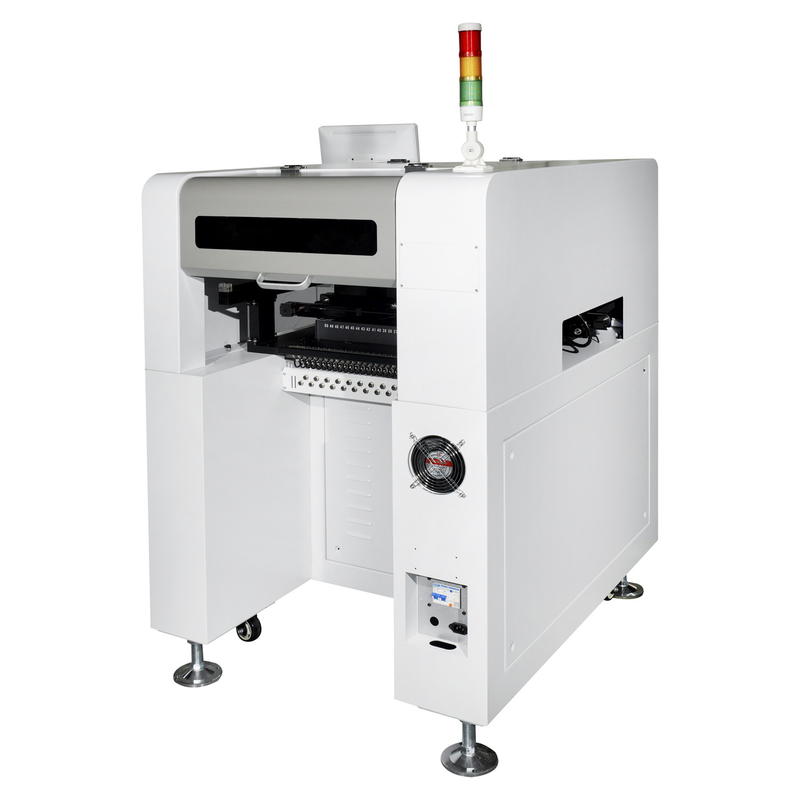

HWGC High speed HW-T4-44/50F pick and place machine Smt pcb production assembly pasted 0201 BGA smt aoi machine
8 groups of independent mounting heads - 8 groups of mounting heads are distributed with different nozzles, which are suitable for the mounting requirements of products with more specifications.
1) 4 groups of mounting heads can realize the double arms and four heads pick simultaneously,pick up the material at same time, The picking efficiency is improved greatly.
2) The mounting head can rise and fall independently, rotate from 0 to 360 degrees, and mount up to 7 mm components.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
|
Applicable Components
|
resistor.capacitor.chip.lamp bead etc.
|
|
Tracks of XY Axis
|
four linear motion quide + four ground ball screw
|
|
Motion Mode of XY Axis
|
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm
|
|
Control Computer
|
industrial control computer with intel high-performance processor
|
|
Adjusting Method of Tracks
|
electric
|
|
|
4.5mm
|
|
Maximum Step Length of Z Axis
|
20mm
|
|
Range of Angle for Components
|
士180°
|
|
Motor
|
Panasonic AC Servo Motor MINAS A6 series
|
|
Driver
|
Panasonic high-speed DSP driver
|
|
Air Supply Requirements
|
oil water filter,> 60L dust filter and air pressure stabilizer etc
|
|
Vision Display
|
17-inch industrial control display
|
|
|
German lgus durable flexible cable(10 million times)
|
|
Power Supply
|
220V 50/60Hz
|
1. Product Introduction: Huawei Guochuang SMT Machine
The HuaWei GuoChuang SMT Machine is a state-of-the-art surface mount technology machine designed to provide high efficiency, accuracy, and reliability. Its superior quality and advanced technology make it an excellent choice for electronic manufacturers who are looking for a powerful SMT machine to meet their production needs.
2. Model
The SMT machine comes in different models depending on specific requirements for users. The most commonly used models include HWP350, HWP520, and HWP650. All models are designed to meet the production needs of electronic manufacturing companies.
3. Advantages
The HuaWei GuoChuang SMT Machine has many advantages over other similar machines in the market. These include:
- High precision and accuracy
- Speed and efficiency in operation
- Compatibility with a wide range of electronic components
- Versatility in processing various sizes and shapes of PCBs
- Advanced software for easy operation and maintenance
- Easy to calibrate and adjust
- Durable and reliable for continuous use
4.Quality
The HuaWei GuoChuang SMT Machine provides high-quality electronic assembly, thanks to its advanced inspection tools, precise positioning, and soldering capabilities. The machine’s built-in inspection systems ensure electronic components are properly placed and soldered, minimizing defects and improving product quality.
5. . Investment
Investing in the HuaWei GuoChuang SMT Machine is a smart choice for electronic manufacturers. Its superior construction, advanced technology, and energy efficiency offer an excellent return on investment, reducing assembly costs while maximizing productivity and product quality.
FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
