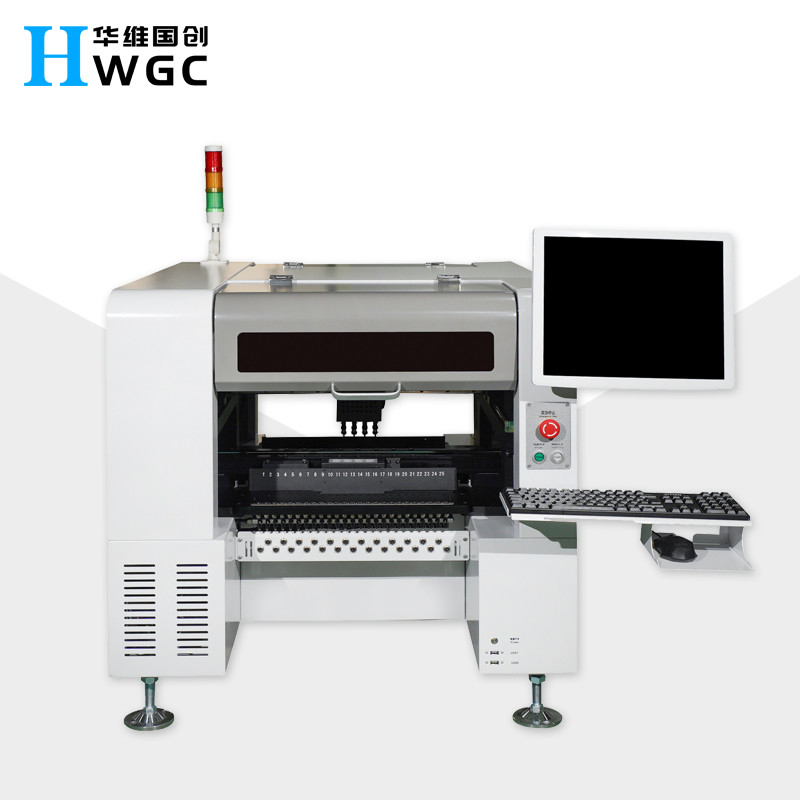

Compact Desktop BGA Placement Machine with 44 Feeders and 4 Heads​



Why use Hua Wei Guochuang's patch machine?


Firstly, the machine has a high degree of accuracy. It uses advanced technology that can place components with a minimum size of 0402 and an accuracy of ±0.025mm. This ensures the quality of the final product and reduces the defect rate. Secondly, the machine is highly efficient. Its placement speed can reach up to 25,000 CPH (components per hour), which greatly improves production efficiency and reduces labor costs. Thirdly, the machine is versatile. It can handle a wide range of components, including resistors, capacitors, ICs, LEDs, and more. It also supports a variety of feeding modes, such as tape reel, tube, tray, and cut tape. Lastly, the machine is easy to operate. It comes with an intuitive software interface that allows users to create and edit placement programs quickly and easily. It also supports automatic calibration and error correction, reducing the need for manual intervention. In conclusion, the use of Huavi Guochuang's surface mount machine ensures high-quality and efficient production of electronic products. Its advanced technology, versatility, and ease of operation make it an ideal choice for electronics manufacturing companies.

This is the answer to the Why use Hua Wei Guochuang's patch machine?? question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.






Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 0Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 1,Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 2Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 3Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 4Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 5Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 6Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 7Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 8

Compact Desktop Bga Placement Pcb Pick And Place Machine 44 Feeders And 4 Heads 9





Number of Placement Heads
4(high-accuracy)
Number of IC Trays
48
Number of Feeders
50/44(subject to 8mm feeder)
Positioning Accuracy
0.01mm
Repeated Mounting Accuracy
0.05mm
Mounting speed range of resistance
5000-8000Pcs/h capacitance components
Applicable Components
resistor,capacitor,chip,lamp bead 0201-30*30mm etc.
Supported Maximum Area of PCB
50*50mm-(50F)350*190mm /(44F)350*260mm
Feeders
electric feeder, pneumatic feeder,vibrating feeder, IC tray etc.
Recognition Devices
mark camera x1,fast recognition camera x4, high-precision camera x1
Maximum Height of Applicable Components
≤7mm
PCB Convey Mode
three-stage entry,automatic connection from left to right, automatic PCB positioning
Mark Positioning
manual / automatic
Programming Method
automatic programming after manually importing files of PCB coordinates
Control System
HuaweiGuochuang control system
Maximum Step Length of XY Axis
629mm*679mm
Tracks of XY Axis
linear motion guide + Screw driver
Motion Mode of XY Axis
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm.
Control Computer
industrial control computer with Intel high-performance processor
Adjusting Method of Tracks
electric
Range of Nozzle Buffer
4.5mm
Maximum Step Length of Z Axis
20mm
Range of Angle for Components
±180°
Motor
AC Servo Motor series
Driver
high-speed DSP driver
Air Supply Requirements
oil water filter,≥ 50L,dust filter and air pressure stabilizer etc.
Vacuum Supply of Nozzle
vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure
0.5-0.7Mpa
OS
Independent research and development SMT intelligent OS based on Windows
PCB requires
3-5mm process edge in automatic mode
Vision Display
17-inch industrial control display
Cable
durable flexible cable(10 million times)
Power Supply
220V 50/60Hz
Average Power
600W
Machine Dimensions
desk machine 1140*900*900mm
vertical machine 900*1140*1340mm
Weight
(desk machine)210kg (vertical machine)280kg
