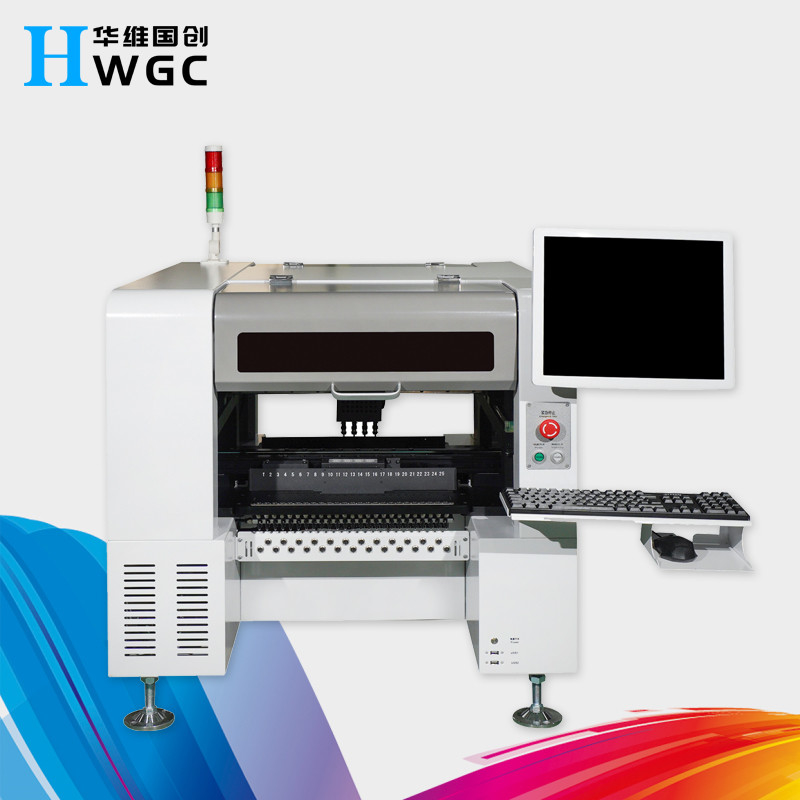

Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop

Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop

  • High Light

    bga smt pick and place machine

    ,

    desktop smt pick and place machine

    ,

    smt led pick and place machine

  • Condition
    Original New
  • Applicable Components
    0402--5050,SOP,TQFP,BGA
  • Usage
    LED Tube Large Qty Production,Circuit Board Assembly/LED Light Production
  • Name
    Pick Place Machine Smt Pcb,Place Machine\LED Mounter\led Assembly Machine,samsung CP45 Machine Pcb Support Pin
  • Application
    SMT PCB Assembly Production Line
  • Product Name
    Automatic SMD Capacitor Placement Machine
  • Type
    SMT Machine Related Products
  • Tape Width
    8mm,12mm,24mm
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    wood
  • Delivery Time
    1
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1

Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop

Low-Cost BGA SMT Placement Machine with 44 Feeder Slots desktop pick and place machine





The advantages of Hua Wei Guochuang patch machine



Huawei Machine Mounter, also known as Huawei Chip Mounter, is one of the latest and most advanced machines developed by Huawei. This machine has various advantages and benefits that make it superior to other machines in the market. In this article, we will explore some of these advantages.



Firstly, the Huawei Machine Mounter has a high accuracy rate. The machine employs advanced technologies such as AI (Artificial Intelligence) and machine learning algorithms to maximize its accuracy. The accuracy rate of this machine is as high as 98%, which ensures high-quality electronic products.



Secondly, the Huawei Machine Mounter has a high-speed production rate. This machine can mount up to 80,000 components per hour, which is much faster than the traditional mounting machines. This means that the Huawei Machine Mounter can handle large production volumes in a short amount of time.



Thirdly, this machine is highly flexible. The machine can handle multiple types of components and has the capability of mounting components of different sizes and shapes. This means that it can be used to produce a wide range of electronic products.



Fourthly, the Huawei Machine Mounter has a user-friendly interface. The machine is designed to be easy to use, with a user-friendly interface that allows operators to quickly and easily set up the machine.



Finally, the Huawei Machine Mounter is highly reliable. The machine is designed with high-quality components and materials, which ensures its durability and longevity. This means that it can work continuously without breaking down or requiring frequent maintenance. In conclusion, the Huawei Machine Mounter has numerous advantages that make it a superior machine for electronic production. Its accuracy, high-speed production rate, flexibility, user-friendly interface, and reliability make it an invaluable asset for electronics manufacturers.


This is the answer to theThe advantages of Hua Wei Guochuang patch machine? question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.







Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 0Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 1,Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 2Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 3Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 4Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 5Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 6Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 7Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 8

Led Bga Smt Pick And Place Machine 44 Feeder Slots Desktop 9





Number of Placement Heads
4(high-accuracy)
Number of IC Trays
48
Number of Feeders
50/44(subject to 8mm feeder)
Positioning Accuracy
0.01mm
Repeated Mounting Accuracy
0.05mm
Mounting speed range of resistance
5000-8000Pcs/h capacitance components
Applicable Components
resistor,capacitor,chip,lamp bead 0201-30*30mm etc.
Supported Maximum Area of PCB
50*50mm-(50F)350*190mm /(44F)350*260mm
Feeders
electric feeder, pneumatic feeder,vibrating feeder, IC tray etc.
Recognition Devices
mark camera x1,fast recognition camera x4, high-precision camera x1
Maximum Height of Applicable Components
≤7mm
PCB Convey Mode
three-stage entry,automatic connection from left to right, automatic PCB positioning
Mark Positioning
manual / automatic
Programming Method
automatic programming after manually importing files of PCB coordinates
Control System
HuaweiGuochuang control system
Maximum Step Length of XY Axis
629mm*679mm
Tracks of XY Axis
linear motion guide + Screw driver
Motion Mode of XY Axis
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm.
Control Computer
industrial control computer with Intel high-performance processor
Adjusting Method of Tracks
electric
Range of Nozzle Buffer
4.5mm
Maximum Step Length of Z Axis
20mm
Range of Angle for Components
±180°
Motor
AC Servo Motor series
Driver
high-speed DSP driver
Air Supply Requirements
oil water filter,≥ 50L,dust filter and air pressure stabilizer etc.
Vacuum Supply of Nozzle
vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure
0.5-0.7Mpa
OS
Independent research and development SMT intelligent OS based on Windows
PCB requires
3-5mm process edge in automatic mode
Vision Display
17-inch industrial control display
Cable
durable flexible cable(10 million times)
Power Supply
220V 50/60Hz
Average Power
600W
Machine Dimensions
desk machine 1140*900*900mm
vertical machine 900*1140*1340mm
Weight
(desk machine)210kg (vertical machine)280kg
