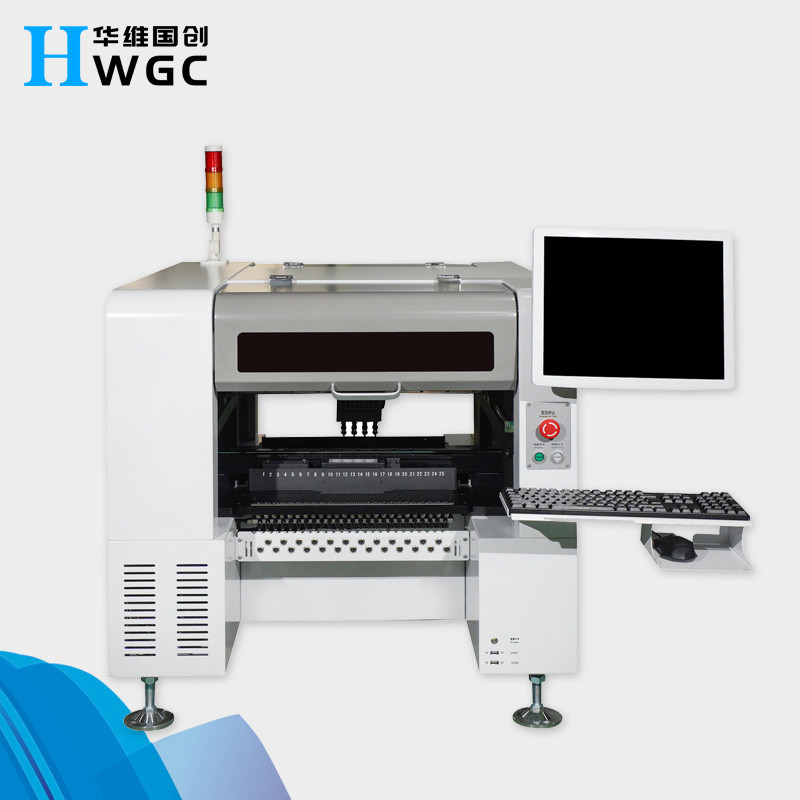

Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width

Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width

  • High Light

    8mm pcb pick and place machine

    ,

    44feeders pcb pick and place machine

    ,

    8mm pick and place machine pcb

  • Condition
    Original New
  • Applicable Components
    0402--5050,SOP,TQFP,BGA
  • Usage
    LED Tube Large Qty Production,Circuit Board Assembly/LED Light Production
  • Name
    Pick Place Machine Smt Pcb,Place Machine\LED Mounter\led Assembly Machine,samsung CP45 Machine Pcb Support Pin
  • Application
    SMT PCB Assembly Production Line
  • Product Name
    Automatic SMD Capacitor Placement Machine
  • Type
    SMT Machine Related Products
  • Tape Width
    8mm,12mm,24mm
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    wood
  • Delivery Time
    1
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1

Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width

SMT pick and place machine Advanced BGA Pick-and-Place Desktop Machine with Four Heads and 44 Feeders

Why choose the brand of Hua Wei Guochuang patch machine



Huawei is a leading brand for surface-mount technology (SMT) solutions, providing high-quality and reliable pick-and-place machines for a variety of industries.
As technology continues to advance, the demand for smaller, more efficient components is increasing, and Huawei's machines are equipped to handle these evolving needs. Huawei's pick-and-place machines have a range of features that set them apart from competitors. They are user-friendly, with intuitive interfaces and easy programming capabilities.

They are also flexible, able to handle a wide range of component sizes and types. Additionally, Huawei's machines have high placement accuracy and speed, enabling faster production rates and more precise placement. Huawei is committed to innovation, regularly introducing new models and incorporating the latest technology into its machines.

The company also provides excellent customer service, offering training and support to ensure customers get the most out of their investments. In summary, Huawei is an excellent choice for anyone looking for high-quality, reliable, and innovative pick-and-place machines for their manufacturing needs.

With their user-friendly interfaces, flexibility, and precision, Huawei's machines are perfect for a variety of industries and applications. Furthermore, their commitment to innovation and customer service make them the brand to trust for SMT solutions.

This is the answer to the Why choose the brand of Hua Wei Guochuang patch machine question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.







Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 0Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 1,Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 2Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 3Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 4Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 5Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 6Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 7Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 8

Four Heads And 44 Feeders Pcb Pick And Place Machine 8mm Tape Width 9





Number of Placement Heads
4(high-accuracy)
Number of IC Trays
48
Number of Feeders
50/44(subject to 8mm feeder)
Positioning Accuracy
0.01mm
Repeated Mounting Accuracy
0.05mm
Mounting speed range of resistance
5000-8000Pcs/h capacitance components
Applicable Components
resistor,capacitor,chip,lamp bead 0201-30*30mm etc.
Supported Maximum Area of PCB
50*50mm-(50F)350*190mm /(44F)350*260mm
Feeders
electric feeder, pneumatic feeder,vibrating feeder, IC tray etc.
Recognition Devices
mark camera x1,fast recognition camera x4, high-precision camera x1
Maximum Height of Applicable Components
≤7mm
PCB Convey Mode
three-stage entry,automatic connection from left to right, automatic PCB positioning
Mark Positioning
manual / automatic
Programming Method
automatic programming after manually importing files of PCB coordinates
Control System
HuaweiGuochuang control system
Maximum Step Length of XY Axis
629mm*679mm
Tracks of XY Axis
linear motion guide + Screw driver
Motion Mode of XY Axis
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm.
Control Computer
industrial control computer with Intel high-performance processor
Adjusting Method of Tracks
electric
Range of Nozzle Buffer
4.5mm
Maximum Step Length of Z Axis
20mm
Range of Angle for Components
±180°
Motor
AC Servo Motor series
Driver
high-speed DSP driver
Air Supply Requirements
oil water filter,≥ 50L,dust filter and air pressure stabilizer etc.
Vacuum Supply of Nozzle
vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure
0.5-0.7Mpa
OS
Independent research and development SMT intelligent OS based on Windows
PCB requires
3-5mm process edge in automatic mode
Vision Display
17-inch industrial control display
Cable
durable flexible cable(10 million times)
Power Supply
220V 50/60Hz
Average Power
600W
Machine Dimensions
desk machine 1140*900*900mm
vertical machine 900*1140*1340mm
Weight
(desk machine)210kg (vertical machine)280kg
