Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk

Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk

Products - PCB Pick And Place Machine
  • High Light

    miniature circuit board pick and place machine

    ,

    bga circuit board pick and place machine

    ,

    smt pick and place pcb assembly equipment

  • Condition
    Original New
  • Applicable Components
    0402--5050,SOP,TQFP,BGA
  • Usage
    LED Tube Large Qty Production,Circuit Board Assembly/LED Light Production
  • Name
    Pick Place Machine Smt Pcb,Place Machine\LED Mounter\led Assembly Machine,samsung CP45 Machine Pcb Support Pin
  • Application
    SMT PCB Assembly Production Line
  • Product Name
    Automatic SMD Capacitor Placement Machine
  • Type
    SMT Machine Related Products
  • Tape Width
    8mm,12mm,24mm
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    wood
  • Delivery Time
    1
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1

Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk

  • Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk
Get Price Contact Now

High-Quality Miniature BGA SMT Placement Machine at Competitive Price pick place machine desk

What are the criteria for a high performance patch machine


The key standards for high-performance surface mount machines (SMT) are precision, speed, and flexibility. Precision: Precision is an essential requirement for a high-performance SMT machine. The machine must be able to place components on the circuit board with a high degree of accuracy. The placement accuracy defines the quality of the final product. The machine can accurately place components to within a few microns of their desired location. Speed: Speed is another critical standard for a high-performance SMT machine. The cycle time of the machine is critical to the production efficiency. The faster the machine can place components, the more significant the number of products it can produce within a given time frame. Flexibility: Flexibility is another important feature of a high-performance SMT machine. The machine must be capable of placing a wide variety of components of different size and shape. The machine should have a flexible feeder arrangement for handling various components. It should also allow for multiple setups on the same machine. Other standards: Other standards of a high-performance SMT machine include the ability to handle components of various forms, like BGA, QFN, etc. The machine has to have a high-adhesive stability that prevents components
from moving around when the printed circuit board is in transit. The machine should also have a quick changeover time from one component type to another, allowing for the production of a wide variety of PCBs. In summary, a high-performance SMT machine should be precise, fast, flexible, and capable of handling different components.

This is the answer to the What are the criteria for a high performance patch machine? question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.

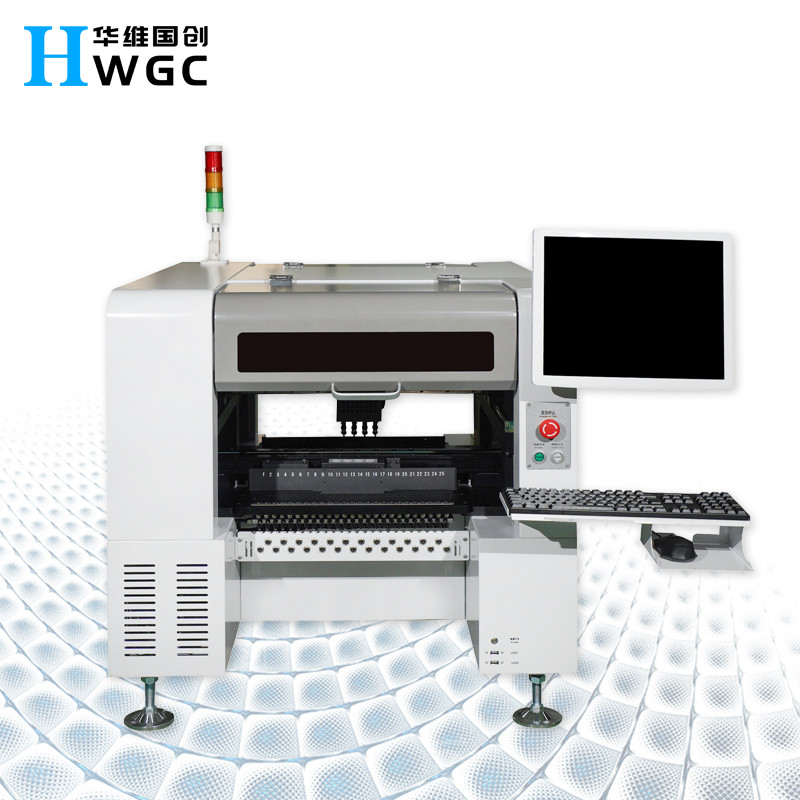

Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 0Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 1,Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 2Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 3Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 4Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 5Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 6Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 7Miniature Bga Smt Placement Circuit Board Pick And Place Machine Desk 8
