Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production

Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production

Products - PCB Pick And Place Machine
  • High Light

    four head pcb pick and place machine

    ,

    bga placement pcb pick and place machine

    ,

    small scale pick and place machine pcb

  • Condition
    Original New
  • Applicable Components
    0402--5050,SOP,TQFP,BGA
  • Usage
    LED Tube Large Qty Production,Circuit Board Assembly/LED Light Production
  • Name
    Pick Place Machine Smt Pcb,Place Machine\LED Mounter\led Assembly Machine,samsung CP45 Machine Pcb Support Pin
  • Application
    SMT PCB Assembly Production Line
  • Product Name
    Automatic SMD Capacitor Placement Machine
  • Type
    SMT Machine Related Products
  • Tape Width
    8mm,12mm,24mm
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    wood
  • Delivery Time
    1
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1

Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production

  • Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production
Get Price Contact Now

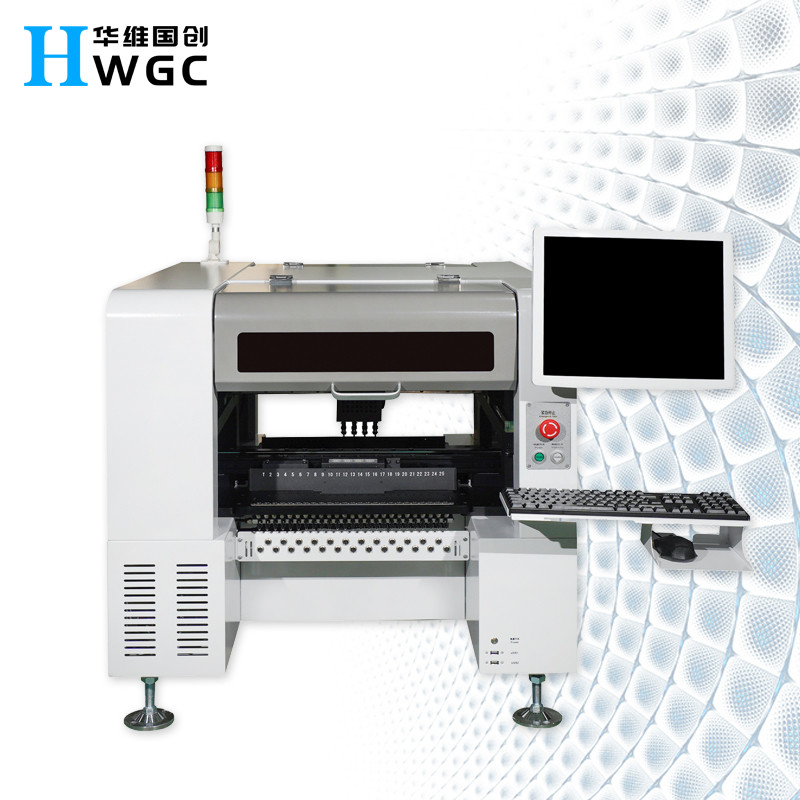

Four-Head BGA Placement Machine with 44 Feeder Positions for Small-Scale Production

What are the conditions of several measures by which the patch machine judges the merits and demerits


In the electronics manufacturing industry, surface mount technology (SMT) has become increasingly popular due to its efficiency and versatility. One of the most crucial equipment in SMT is the pick-and-place machine, commonly known as the chip mounter or pick-and-place machine. To gauge the performance of a pick-and-place machine, several factors play critical roles. Firstly, the speed and accuracy of the pick-and-place machine are critical for the production process. With the increasing speed requirements in the industry, the machine needs to have high placement rates while maintaining high precision. The ability to handle different types of components and sizes is also a factor to consider. Secondly, reliability is an important factor. The pick-and-place machine should function smoothly without breakdowns or failures, along with minimal maintenance needs. A reliable machine provides the assurance needed in mass production. Another parameter that affects a pick-and-place machine is the versatility to customize programming solutions. The machine should be able to handle a variety of production batch sizes and permit programming changes easily, switching between different products to ensure significant machine utilization. Finally, the cost of the pick-and-place machine will impact the production cost significantly. The machine's affordability should match the production requirements and revenue projections of the manufacturer. In conclusion, the performance of a pick-and-place machine is crucial to the overall quality and productivity of the electronic manufacturing process. The speed, accuracy, reliability, versatility, and cost are the most critical factors to consider before purchasing a machine for mass production purposes.

This is the answer to the What are the conditions of several measures by which the patch machine judges the merits and demerits? question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.







Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 0Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 1,Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 2Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 3Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 4Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 5Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 6Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 7Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 8

Four Head Bga Placement Pcb Pick And Place Machine For Small Scale Production 9





Number of Placement Heads
4(high-accuracy)
Number of IC Trays
48
Number of Feeders
50/44(subject to 8mm feeder)
Positioning Accuracy
0.01mm
Repeated Mounting Accuracy
0.05mm
Mounting speed range of resistance
5000-8000Pcs/h capacitance components
Applicable Components
resistor,capacitor,chip,lamp bead 0201-30*30mm etc.
Supported Maximum Area of PCB
50*50mm-(50F)350*190mm /(44F)350*260mm
Feeders
electric feeder, pneumatic feeder,vibrating feeder, IC tray etc.
Recognition Devices
mark camera x1,fast recognition camera x4, high-precision camera x1
Maximum Height of Applicable Components
≤7mm
PCB Convey Mode
three-stage entry,automatic connection from left to right, automatic PCB positioning
Mark Positioning
manual / automatic
Programming Method
automatic programming after manually importing files of PCB coordinates
Control System
HuaweiGuochuang control system
Maximum Step Length of XY Axis
629mm*679mm
Tracks of XY Axis
linear motion guide + Screw driver
Motion Mode of XY Axis
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm.
Control Computer
industrial control computer with Intel high-performance processor
Adjusting Method of Tracks
electric
Range of Nozzle Buffer
4.5mm
Maximum Step Length of Z Axis
20mm
Range of Angle for Components
±180°
Motor
AC Servo Motor series
Driver
high-speed DSP driver
Air Supply Requirements
oil water filter,≥ 50L,dust filter and air pressure stabilizer etc.
Vacuum Supply of Nozzle
vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure
0.5-0.7Mpa
OS
Independent research and development SMT intelligent OS based on Windows
PCB requires
3-5mm process edge in automatic mode
Vision Display
17-inch industrial control display
Cable
durable flexible cable(10 million times)
Power Supply
220V 50/60Hz
Average Power
600W
Machine Dimensions
desk machine 1140*900*900mm
vertical machine 900*1140*1340mm
Weight
(desk machine)210kg (vertical machine)280kg
