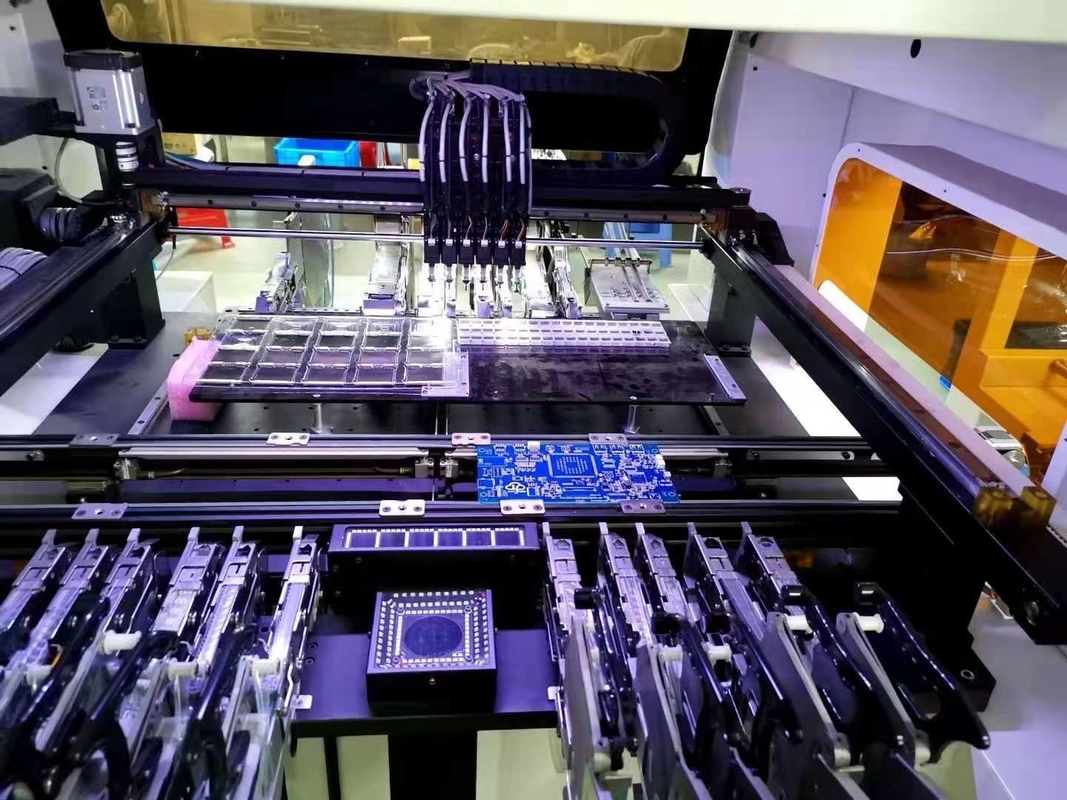

Small Automatic SMD Soldering Machine Fuji NXT Feeder Surface Mount Soldering Oven

Small Automatic SMD Soldering Machine Fuji NXT Feeder Surface Mount Soldering Oven

Products - SMT Reflow Oven
  • High Light

    Small SMD Soldering Machine

    ,

    Automatic SMD Soldering Machine

    ,

    NXT Feeder Surface Mount Soldering Oven

  • MAX Circuit Board Area
    340*560mm
  • Vision On
    20000pcs/h
  • Vision Off
    26000pcs/h
  • Warranty
    1 Year
  • Number Of Head
    8
  • Number Of Feeder
    120
  • Software
    English
  • Number Of Camera
    11
  • Place of Origin
    CHINA
  • Brand Name
    HWGC
  • Model Number
    HW-DSQ800-120F
  • Minimum Order Quantity
    1
  • Price
    24500-24800$
  • Delivery Time
    8 work day
  • Payment Terms
    T/T

Small Automatic SMD Soldering Machine Fuji NXT Feeder Surface Mount Soldering Oven

  • Small Automatic SMD Soldering Machine Fuji NXT Feeder Surface Mount Soldering Oven
Get Price Contact Now

New 8 Heads Small Automatic LED Pick And Place Machine SMD Mounting Machine with Fuji NXT Feeder SMD Led Mounting

Introduction

The machine H4 with the ball screw and servo motor which is more stable and accurate than normal step motor, software designed and developed by our self. It is available in English. And we will keep updating it. Customers can get updated software regularly. Machine is of high quality,with at least one-year warranty, lifetime maintenance

Feature

1. SMT pick and place machine with 50 feeders +4 heads adopts Panasonic servo motor to ensure it is stable and accuracy 2. SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable 3. Four mounting heads work together, under 6 cameras inspection,come with 50 feeder positions will make machine working more

Part List

1. Pick and place machine:1Set 2. IC fixed support:4Sets (four M5*8, four M5*16) 3. JUKI nozzle:12Pcs (502*2,503*3,504*4,505*2,506*1) 4. Calibration suction nozzle:4PCS 5.Power wire:1PC 6. F ixed foot:4PCS (Diameter 20mm) 7. The keyboard and mouse:1Set 8. Nozzle calibration ink-pad:1Box 9. lubricant:1PC 10. Chassis key:1PC 11. PC:1Set 12. 17-inch liquid crystal display:1Set

Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.

Q:The Warranty of the machine?
A: One year, then the parts will be free for the buyer in the warranty. If there is any doubt in the process of operating the
machine, pls feel free contact us. We will help you in time.

Q:English version for these machines?
A: Yes, and we will reqularly update the software for customers.
