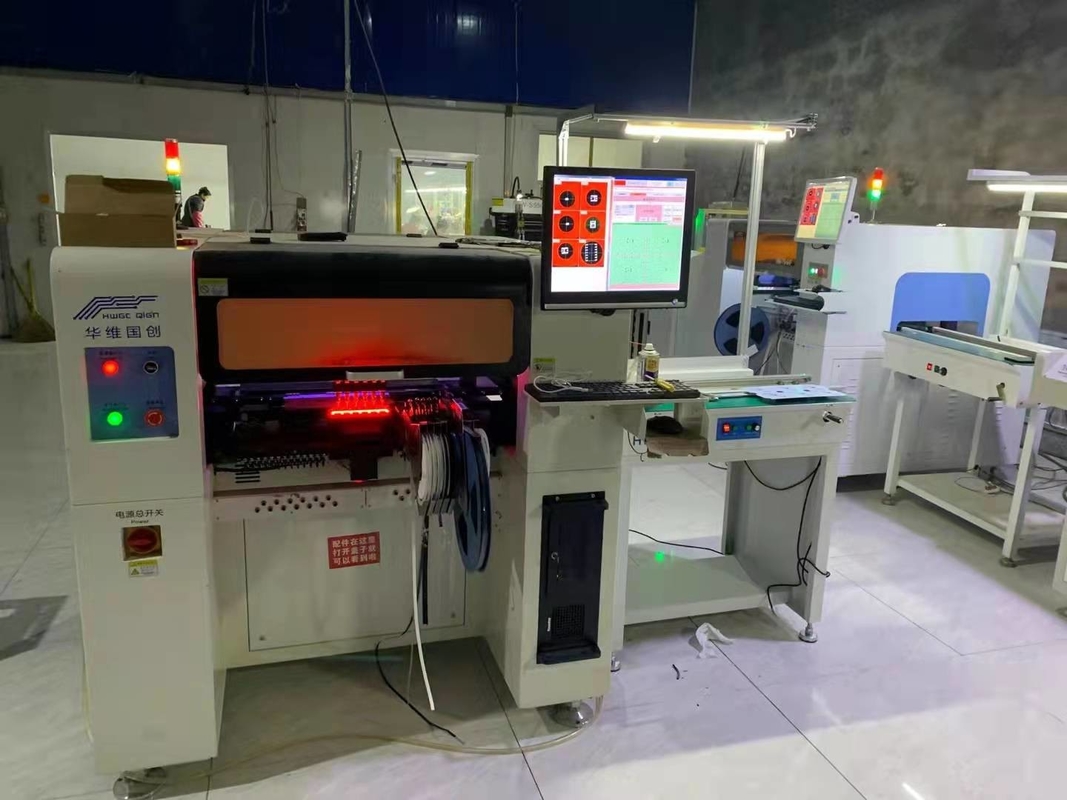

Stock in EU Automatic Chip Mounter Pick and place machine DSQ800-120F Led Manufacturing Machine with 120 feeders+ servo
Use the same type of cable carriers bearing up to 10 million constant motions as imported machines.
flexible cables designed for industrial motion applicati-on,which can resist a range of dangerous conditions, like extre-me temperatures and oil, and can handle any type of motion, including horizontal, torsional or high speed, ensure the reliab-le connection of the electrical circuit in high-speed reciprocati-ng motion.
The use of imported precision ball screw and linear motion guide,will bring long term maintenance-free operation, high accuracy and noise-free runnning ,improves the machine per-formance effectively.
Guarantee the mounting accuracy of 0201-0402,QFN,QFP and BGA.
Achieve high stability of 24-hour continuous work without downtime, considerably improving the productivity.
|
|
|
Maximum Step Length of Z Axis
|
50mm
|
|
Range of Angle for Components
|
士180°
|
|
Motor
|
Panasonic AC Servo Motor MINAS A6 series
|
|
Driver
|
Panasonic high-speed DSP driver
|
|
Air Supply Requirements
|
oil water filter,> 60L dust filter and air pressure stabilizer etc
|
|
Vacuum Supply of Nozzle
|
Japanese CKD vacuum generator integrating the high-speed vacuum burst function
|
Range of Air Supply Pressure
|
0.5-0.6mp
|
|
OS
|
independent research and development SMT intelligent OS based on Windows
|
|
Vision Display
|
17-inch industrial control display
|
|
|
German lgus durable flexible cable(10 million times)
|
|
Power Supply
|
220V 50/60Hz
|
|
|
1500W
|
|
Machine Dimensions
|
1740*1360*1440mm
|
|
Weight
|
1100Kg
|
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate. We have English user manual and guide video to teach you how to use the machine. The user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A: All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own paten.
