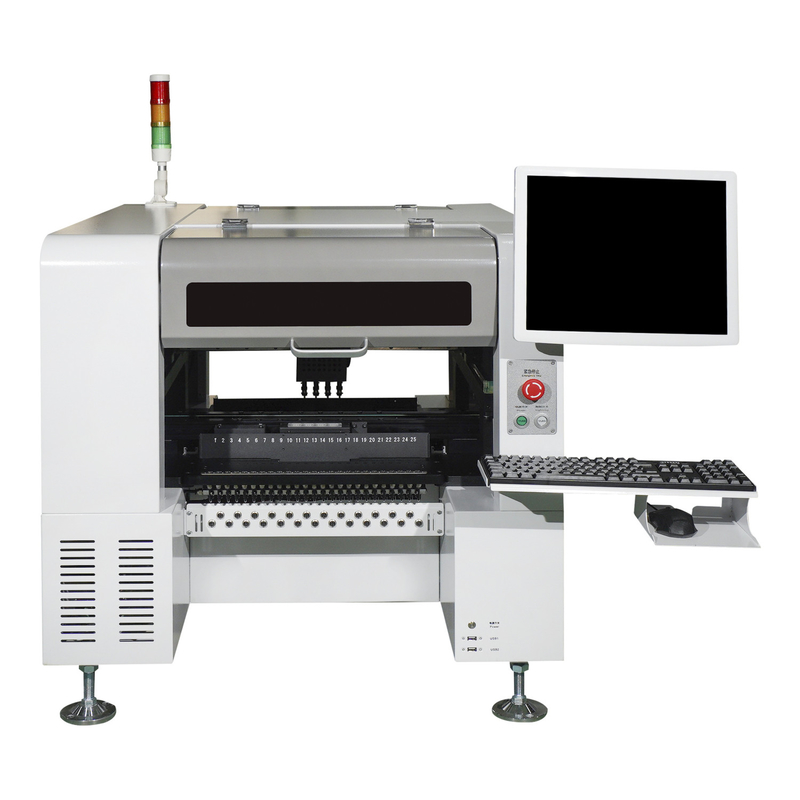

| Number of Placement Heads | 4(high-accuracy) |
| Number of IC Trays | 48 |
| Number of Feeders | 50/44(subject to 8mm feeder) |
| Positioning Accuracy | 0.01mm |
| Repeated Mounting Accuracy | 0.05mm |
| Mounting speed range of resistance | 5000-8000Pcs/h capacitance components |
| Applicable Components | resistor,capacitor,chip,lamp bead 0201-30*30mm etc. |
| Supported Maximum Area of PCB | 50*50mm-(50F)350*190mm /(44F)350*260mm |
| Feeders | electric feeder, pneumatic feeder,vibrating feeder, IC tray etc. |
| Recognition Devices | mark camera x1,fast recognition camera x4, high-precision camera x1 |
| Maximum Height of Applicable Components | ≤7mm |
| PCB Convey Mode | three-stage entry,automatic connection from left to right, automatic PCB positioning |
| Mark Positioning | manual / automatic |
| Programming Method | automatic programming after manually importing files of PCB coordinates |
| Control System | HuaweiGuochuang control system |
| Maximum Step Length of XY Axis | 629mm*679mm |
| Tracks of XY Axis | linear motion guide + Screw driver |
| Motion Mode of XY Axis | intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm. |
| Control Computer | industrial control computer with Intel high-performance processor |
| Adjusting Method of Tracks | electric |
| Range of Nozzle Buffer | 4.5mm |
| Maximum Step Length of Z Axis | 20mm |
| Range of Angle for Components | ±180° |
| Motor | AC Servo Motor series |
| Driver | high-speed DSP driver |
| Air Supply Requirements | oil water filter,≥ 50L,dust filter and air pressure stabilizer etc. |
| Vacuum Supply of Nozzle | vacuum generator integrating the high-speed vacuum burst function |
| Range of Air Supply Pressure | 0.5-0.7Mpa |
| OS | Independent research and development SMT intelligent OS based on Windows |
| PCB requires | 3-5mm process edge in automatic mode |
| Vision Display | 17-inch industrial control display |
| Cable | durable flexible cable(10 million times) |
| Power Supply | 220V 50/60Hz |
| Average Power | 600W |
| Machine Dimensions |
desk machine 1140*900*900mm vertical machine 900*1140*1340mm |
| Weight | (desk machine)210kg (vertical machine)280kg |
