What is a pick and place machine used for?
Surface mount technology (SMT) is a widely adopted technique by electronic manufacturers for the production of small and medium-sized circuit boards. A pick and place machine, commonly known as a surface mount technology machine or a SMT machine, is a type of robot that enables placing electronic components onto the printed circuit boards (PCBs) effortlessly and with high precision.
The primary function of a SMT machine is to automate the process of placing numerous electronic components onto the PCB. The machine follows an automatic procedure where a feeder feeds electronic components, and a camera recognizes the components before securely placing them on the designated destination on the PCB. This operating technique not only enhances the precision of placing the components but also streamlines the process of assembly at a faster rate.
SMT machines have evolved over the years, and modern machines come with several features that allow them to carry out additional functions. The advanced machines have the capability of being able to adjust the PCBs' orientation, handle a wider range of component shapes and sizes, and fix the components at a faster rate than their predecessors. Additionally, the machines have the ability to work simultaneously on different PCBs, which has made them a valuable asset in large-scale electronic manufacturing.
In conclusion, SMT machines have revolutionized the electronic manufacturing industry, enabling manufacturers to produce small and medium-sized circuit boards proficiently and at a faster rate. The automated process of component placement is precise and efficient, which has improved the quality of product output. This has made SMT machines an invaluable asset for electronic manufacturers that strive to stay competitive and maintain high-quality standards in their industries.
This is the answer to the What is a pick and place machine used for? question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.
,
|

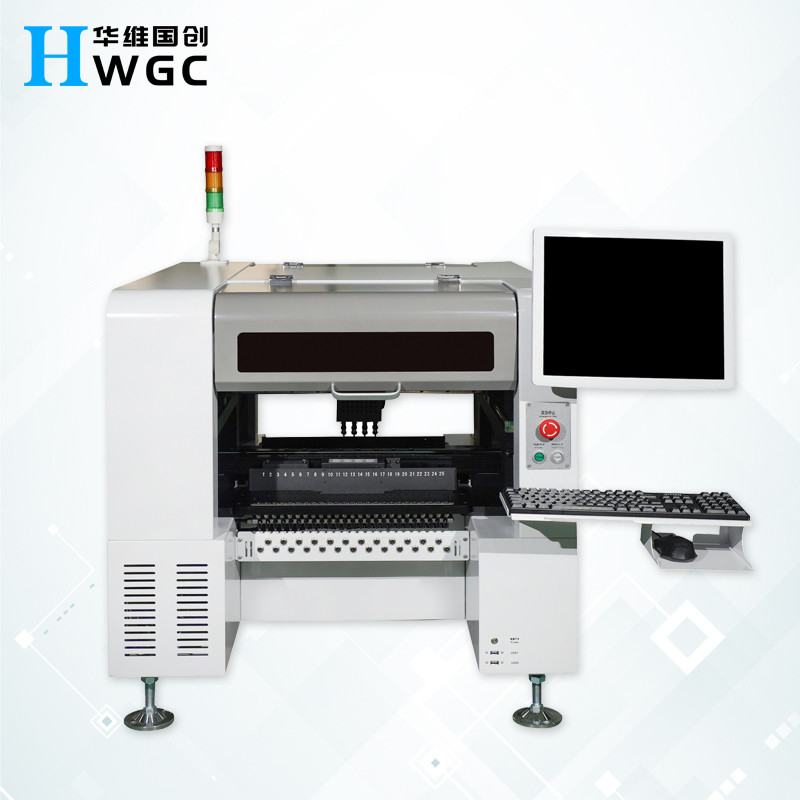

Number of Placement Heads
|
4(high-accuracy)
|
|
Number of IC Trays
|
48
|
|
Number of Feeders
|
50/44(subject to 8mm feeder)
|
|
Positioning Accuracy
|
0.01mm
|
|
Repeated Mounting Accuracy
|
0.05mm
|
|
Mounting speed range of resistance
|
5000-8000Pcs/h capacitance components
|
|
Applicable Components
|
resistor,capacitor,chip,lamp bead 0201-30*30mm etc.
|
|
Supported Maximum Area of PCB
|
50*50mm-(50F)350*190mm /(44F)350*260mm
|
|
Feeders
|
electric feeder, pneumatic feeder,vibrating feeder, IC tray etc.
|
|
Recognition Devices
|
mark camera x1,fast recognition camera x4, high-precision camera x1
|
|
Maximum Height of Applicable Components
|
≤7mm
|
|
PCB Convey Mode
|
three-stage entry,automatic connection from left to right, automatic PCB positioning
|
|
Mark Positioning
|
manual / automatic
|
|
Programming Method
|
automatic programming after manually importing files of PCB coordinates
|
|
Control System
|
HuaweiGuochuang control system
|
|
Maximum Step Length of XY Axis
|
629mm*679mm
|
|
Tracks of XY Axis
|
linear motion guide + Screw driver
|
|
Motion Mode of XY Axis
|
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm.
|
|
Control Computer
|
industrial control computer with Intel high-performance processor
|
|
Adjusting Method of Tracks
|
electric
|
|
Range of Nozzle Buffer
|
4.5mm
|
|
Maximum Step Length of Z Axis
|
20mm
|
|
Range of Angle for Components
|
±180°
|
|
Motor
|
AC Servo Motor series
|
|
Driver
|
high-speed DSP driver
|
|
Air Supply Requirements
|
oil water filter,≥ 50L,dust filter and air pressure stabilizer etc.
|
|
Vacuum Supply of Nozzle
|
vacuum generator integrating the high-speed vacuum burst function
|
|
Range of Air Supply Pressure
|
0.5-0.7Mpa
|
|
OS
|
Independent research and development SMT intelligent OS based on Windows
|
|
PCB requires
|
3-5mm process edge in automatic mode
|
|
Vision Display
|
17-inch industrial control display
|
|
Cable
|
durable flexible cable(10 million times)
|
|
Power Supply
|
220V 50/60Hz
|
|
Average Power
|
600W
|
|
Machine Dimensions
|
desk machine 1140*900*900mm
vertical machine 900*1140*1340mm
|
|
Weight
|
(desk machine)210kg (vertical machine)280kg
|
