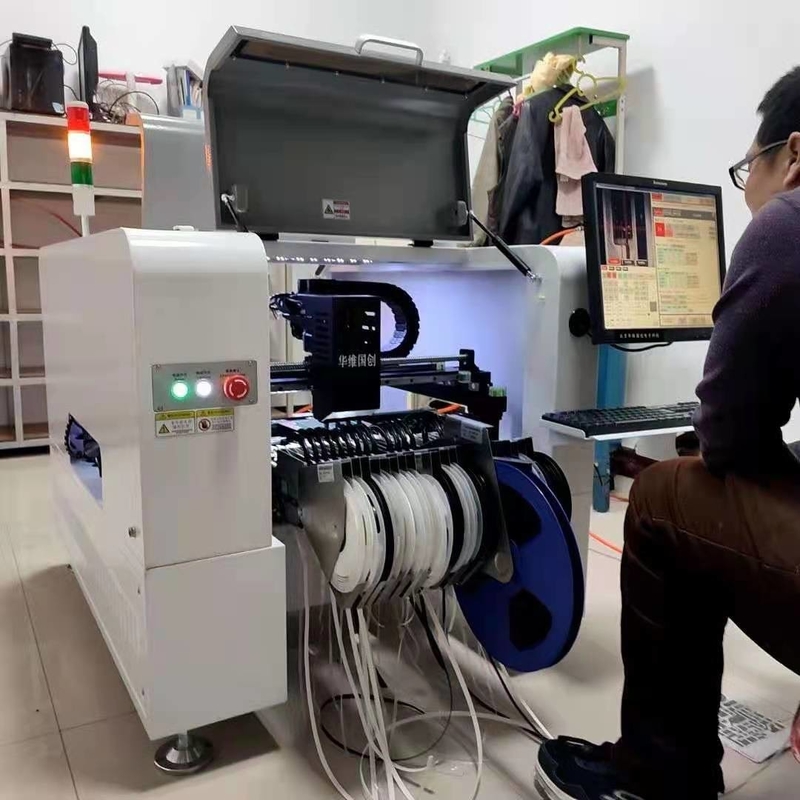

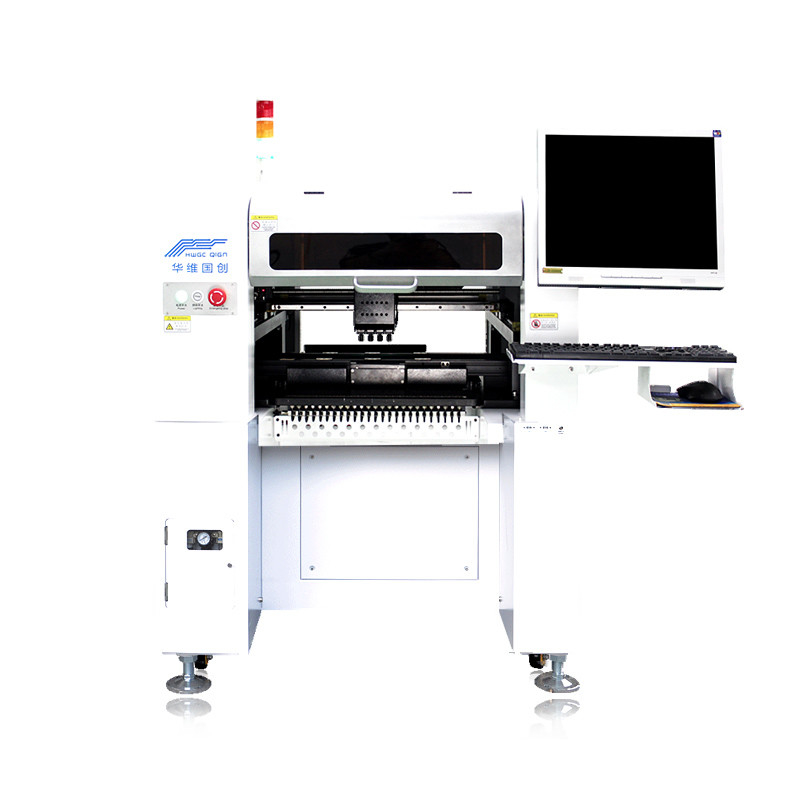

High Speed SMD Pick And Place Machine With 4 Heads And 6 Cameras and 50 Feeder slots
Pick And Place Machine , Chip Mounter Surface Mounter , Smt Machine
porduct
The HW-T4-44/50F is our most popular model with Vision. The HW-T4-44/50F offers technologically advanced features with 260mm x 400mm work area, 50 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.
* The highest quality with the most advanced equipment at a cost-effective solution
*Placement rates up to 7000 cph
*Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...
| Placement rates | 7000CPH |
| Accuracy | ± .001” (0.02mm) |
| Voltage | 220AC |
| Weight | 280kg |
| Warranty | 1 year |
| Suppport | Video Support |

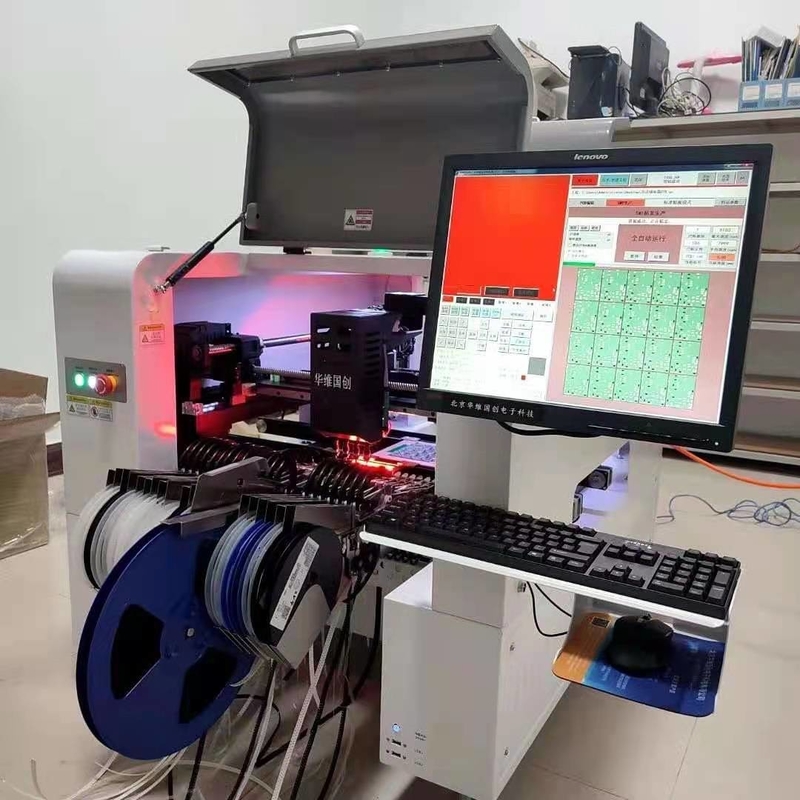

| UI | The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes |
| Max no. of Feeders (8mm tape) | Max no. of Feeders (8mm tape) |
| Max Board Size | 260mmX400mm |
| Smallest Component Capability | 201 |

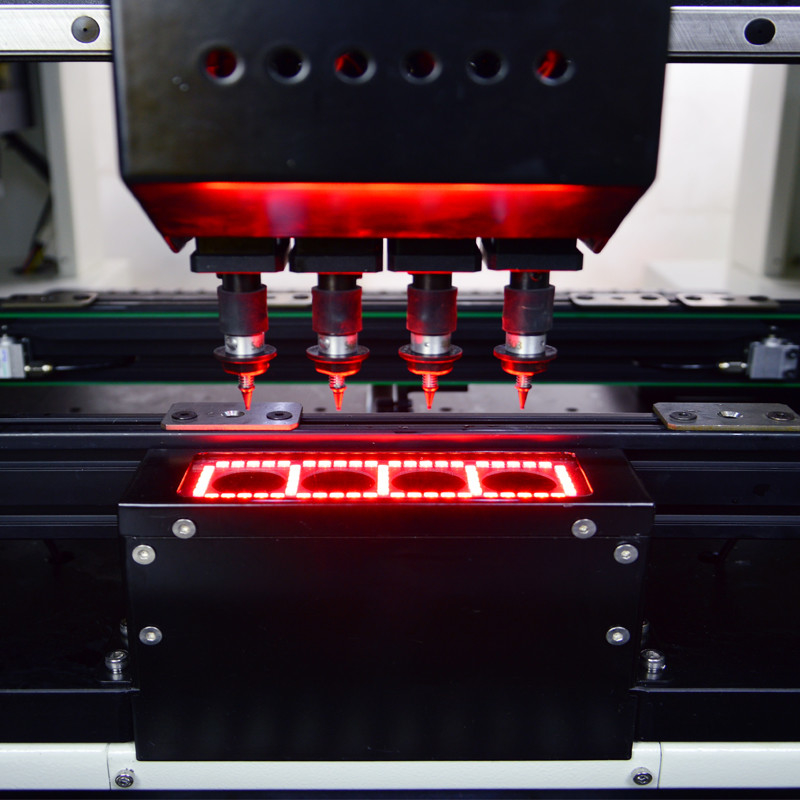

| Vision System | HWGC Vision |
| Vibratory Feeders | Loose, tube, stick (frequency & amplitude control) |
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
Our products are sold all over the world, you can rest assured.
