120 single feeder positions where quick setup easy of operation and high reliability are paramount.
porduct description

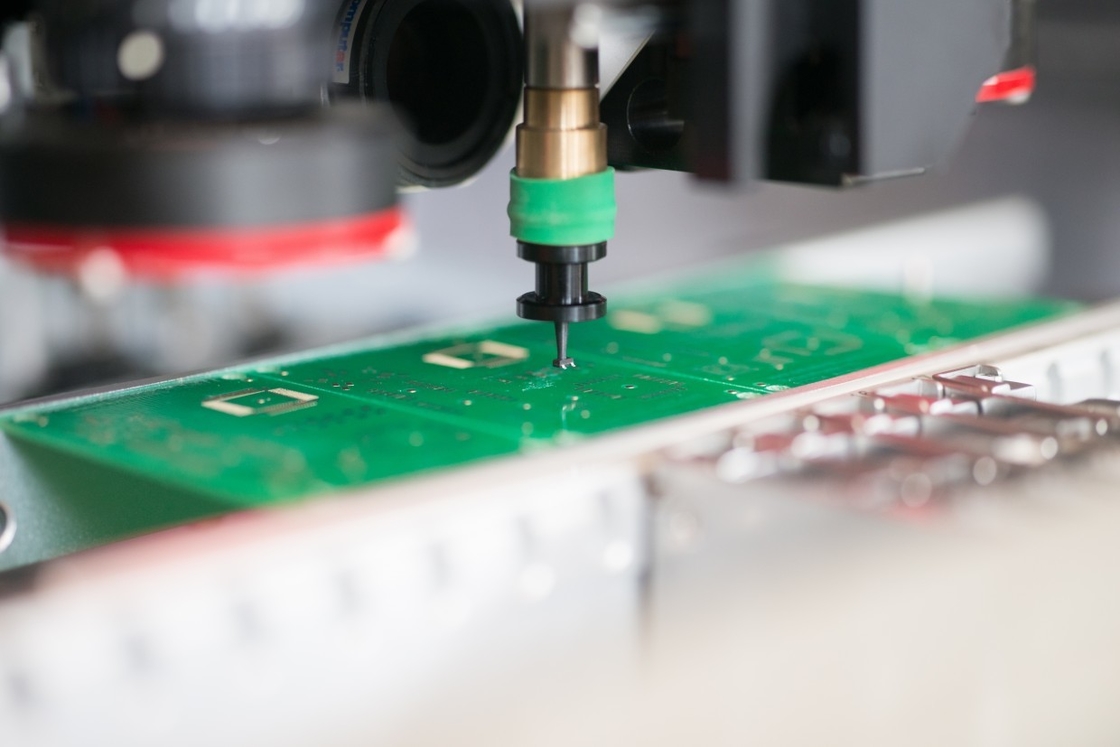

The HW-DSQ800-120F is our most popular model with Vision. The HW-DSQ800-120F offers technologically advanced features with 260mm x 400mm work area, 120 single feeder positions where quick setup, easy of operation and high reliability are paramount.
System Features
* The highest quality with the most advanced equipment at a cost-effective solution
* Placement rates up to 25000-26000 cph
* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...
Our vision is to become an enterprise which ma-kes cost-effective domestic pick and place machine of our own and we intend to break the current situ-ation of international monopoly.
We have maintained the philosophy of being pa-triotic, pragmatic, innovative as well as serving the society. The products of pick and place machine on sale are not only appreciated by small and medium-sized enterprises at home, but also very well receiv-ed by consumers abroad.
|
|
|
Number of Placement Heads
|
8(high-accuracy)
|
|
Number of iC Trays
|
96
|
|
Number of Feeders
|
120(subject to 8mm feeder)
|
|
Positioning Accuracy
|
0.01mm
|
|
Repeated Mounting Accuracy
|
0.02mm
|
|
Range of Mounting Speed
|
20000-26000Pcs/h
|
|
Applicable Components
|
resistor.capacitor.chip.lamp bead etc.
|
|
Supported Maximum Area of PCB
|
340*560mm
|
|
Feeders
|
NXT electric feeder,vibrating feeder, IC tray etc
|
|
Recognition Devices
|
mark camera x2,fast recognition camera x8. high-precision camera x1
|
|
Maximum Height of Applicable Components
|
≤20mm
|
|
Recognition Methods
|
simultaneous recognition and picking with eight heads
|
|
PCB Convey Mode
|
three-stage entry automatic connection from left to right, automatic PCB positioning
|
|
Mark Positioning
|
manual/automatic
|
|
Programming Method
|
automatic programming after manually importing files of PCB coordinates
|
|
Control System
|
HuaweiGuochuang 2021 control system
|
|
Maximum Step Length of XY Axis
|
423mm*734mm(left)423mm*734mm(right)
|
|
Tracks of XY Axis
|
four linear motion quide + four ground ball screw
|
|
Motion Mode of XY Axis
|
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm
|
|
Control Computer
|
industrial control computer with intel high-performance processor
|
|
Adjusting Method of Tracks
|
electric
|
|
|
4.5mm
|
|
Maximum Step Length of Z Axis
|
50mm
|
|
Range of Angle for Components
|
士180°
|
|
Motor
|
Panasonic AC Servo Motor MINAS A6 series
|
|
Driver
|
Panasonic high-speed DSP driver
|
|
Air Supply Requirements
|
oil water filter,> 60L dust filter and air pressure stabilizer etc
|
|
Vacuum Supply of Nozzle
|
Japanese CKD vacuum generator integrating the high-speed vacuum burst function
|
Range of Air Supply Pressure
|
0.5-0.6mp
|
|
OS
|
independent research and development SMT intelligent OS based on Windows
|
|

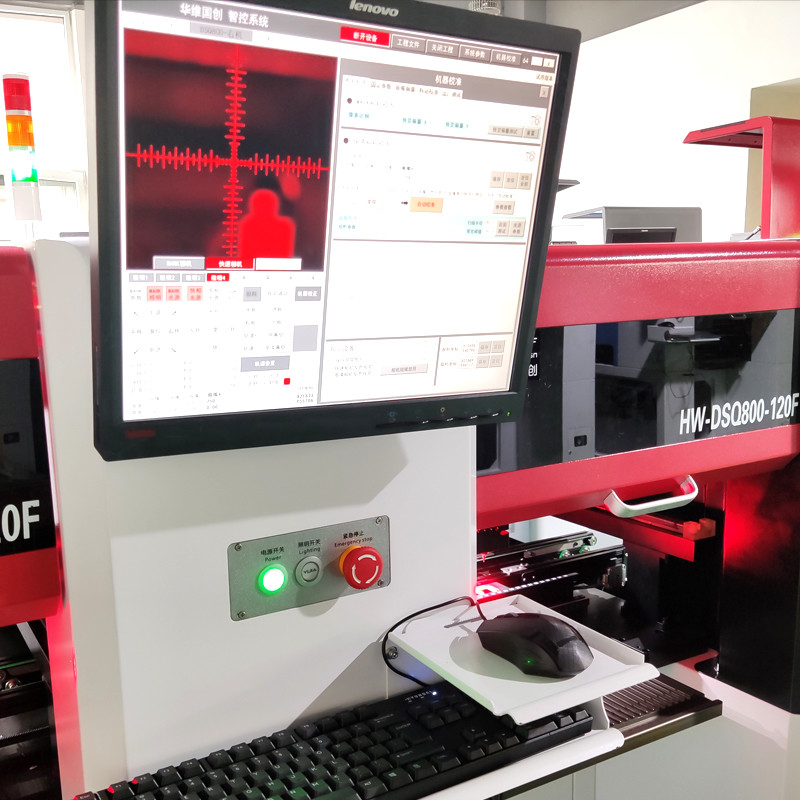

Vision Display
|
17-inch industrial control display
|
|
|
German lgus durable flexible cable(10 million times)
|
|
Power Supply
|
220V 50/60Hz
|
|
|
1500W
|
|
Machine Dimensions
|
1740*1360*1440mm
|
|
Weight
|
1100Kg
|
Vision SystemThe HW vision System assist allows accurate placement of 0201, BGA, QFN, QFP,LED and a wide range of virtually all SMT components.
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Feeders
NXT Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
