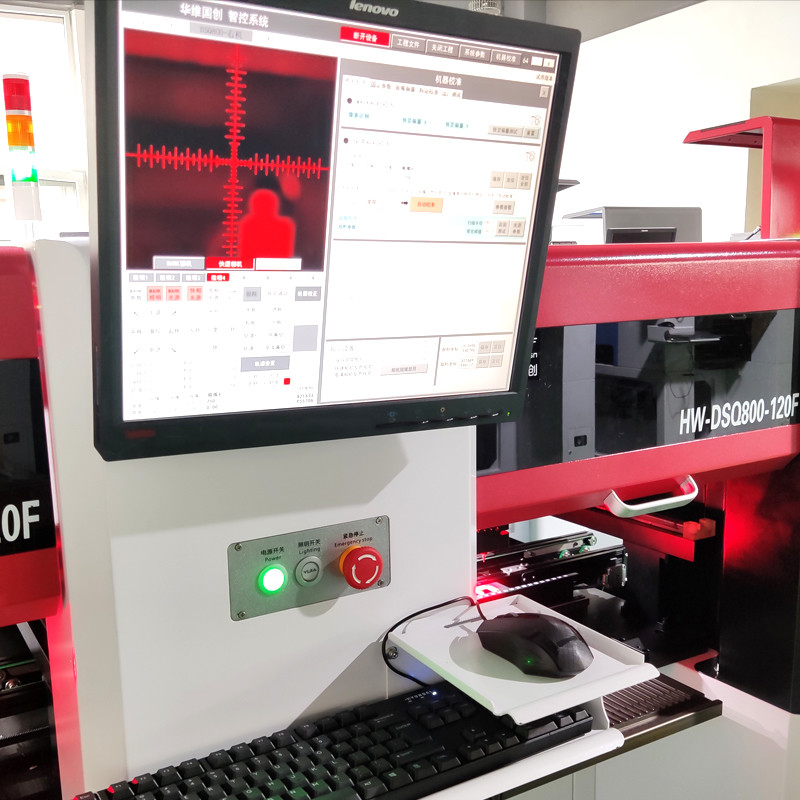

HW-DSQ800-120F offers technologically advanced features with 330mm x 470mm work area
porduct
The HW-DSQ800-120F is our most popular model with Vision. The HW-DSQ800-120F offers technologically advanced features with 260mm x 400mm work area, 120 single feeder positions where quick setup, easy of operation and high reliability are paramount.
System Features
* The highest quality with the most advanced equipment at a cost-effective solution
* Placement rates up to 25000-26000 cph
* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...
| Placement rates | 26000CPH |
| Accuracy | ± .001” (0.02mm) |
| Voltage | 220AC |
| Weight | 1000kg |
| Warranty | 1 year |
| Suppport | Video Support |
| UI | The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes |
| Max no. of Feeders (8mm tape) | 120 pcs |
| Max Board Size | 380mmX400mm |
| Smallest Component Capability | 0201 |
| Vision System | HWGC Vision |
| Vibratory Feeders | Loose, tube, stick (frequency & amplitude control) |
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
NXT Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
Our products are sold all over the world, you can rest assured.
