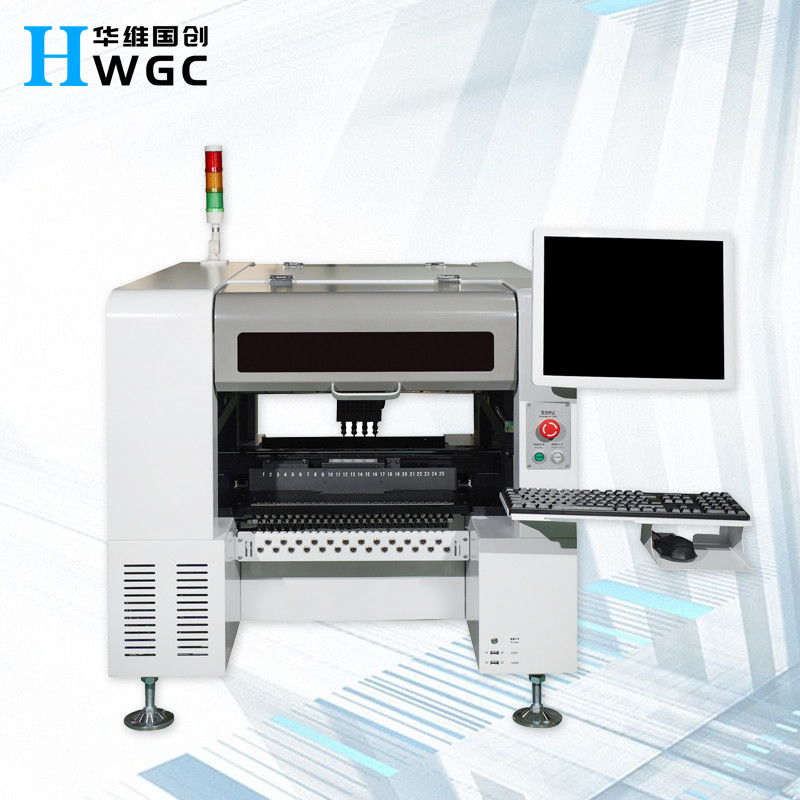

4-Head 44-Position Pick-and-Place BGA Desktop Machine at Affordable Price
How to use the patch machine to build a small studio how much is the cost?
A pick and place machine, also known as a SMT (surface mount technology) pick and place machine, is an essential tool in any small-scale electronics workshop. This machine allows you to quickly and accurately place tiny electronic components on printed circuit boards (PCBs).
The cost of setting up a small-scale electronics workshop with a pick and place machine will depend on the machine's quality and your needs. Entry-level pick and place machines can cost between $5,000 to $10,000, while more advanced machines can cost up to $50,000.
Beyond the pick and place machine, you will also need a few other tools and supplies to get started. These may include:
- A soldering iron - $50 to $100
- Solder - $10 to $50
- Flux - $5 to $20
- PCBs - $5 to $20 each
- Electronic components - varies depending on your project
Overall, you can expect to spend anywhere from $6,000 to $60,000 setting up a small-scale electronics workshop with a pick and place machine. However, with careful planning and a solid business plan, you can turn your workshop into a profitable business.
This is the answer to the How to use the patch machine to build a small studio how much is the cost?? question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.
,
|
Number of Placement Heads
|
4(high-accuracy)
|
|
Number of IC Trays
|
48
|
|
Number of Feeders
|
50/44(subject to 8mm feeder)
|
|
Positioning Accuracy
|
0.01mm
|
|
Repeated Mounting Accuracy
|
0.05mm
|
|
Mounting speed range of resistance
|
5000-8000Pcs/h capacitance components
|
|
Applicable Components
|
resistor,capacitor,chip,lamp bead 0201-30*30mm etc.
|
|
Supported Maximum Area of PCB
|
50*50mm-(50F)350*190mm /(44F)350*260mm
|
|
Feeders
|
electric feeder, pneumatic feeder,vibrating feeder, IC tray etc.
|
|
Recognition Devices
|
mark camera x1,fast recognition camera x4, high-precision camera x1
|
|
Maximum Height of Applicable Components
|
≤7mm
|
|
PCB Convey Mode
|
three-stage entry,automatic connection from left to right, automatic PCB positioning
|
|
Mark Positioning
|
manual / automatic
|
|
Programming Method
|
automatic programming after manually importing files of PCB coordinates
|
|
Control System
|
HuaweiGuochuang control system
|
|
Maximum Step Length of XY Axis
|
629mm*679mm
|
|
Tracks of XY Axis
|
linear motion guide + Screw driver
|
|
Motion Mode of XY Axis
|
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm.
|
|
Control Computer
|
industrial control computer with Intel high-performance processor
|
|
Adjusting Method of Tracks
|
electric
|
|
Range of Nozzle Buffer
|
4.5mm
|
|
Maximum Step Length of Z Axis
|
20mm
|
|
Range of Angle for Components
|
±180°
|
|
Motor
|
AC Servo Motor series
|
|
Driver
|
high-speed DSP driver
|
|
Air Supply Requirements
|
oil water filter,≥ 50L,dust filter and air pressure stabilizer etc.
|
|
Vacuum Supply of Nozzle
|
vacuum generator integrating the high-speed vacuum burst function
|
|
Range of Air Supply Pressure
|
0.5-0.7Mpa
|
|
OS
|
Independent research and development SMT intelligent OS based on Windows
|
|
PCB requires
|
3-5mm process edge in automatic mode
|
|
Vision Display
|
17-inch industrial control display
|
|
Cable
|
durable flexible cable(10 million times)
|
|
Power Supply
|
220V 50/60Hz
|
|
Average Power
|
600W
|
|
Machine Dimensions
|
desk machine 1140*900*900mm
vertical machine 900*1140*1340mm
|
|
Weight
|
(desk machine)210kg (vertical machine)280kg
|
