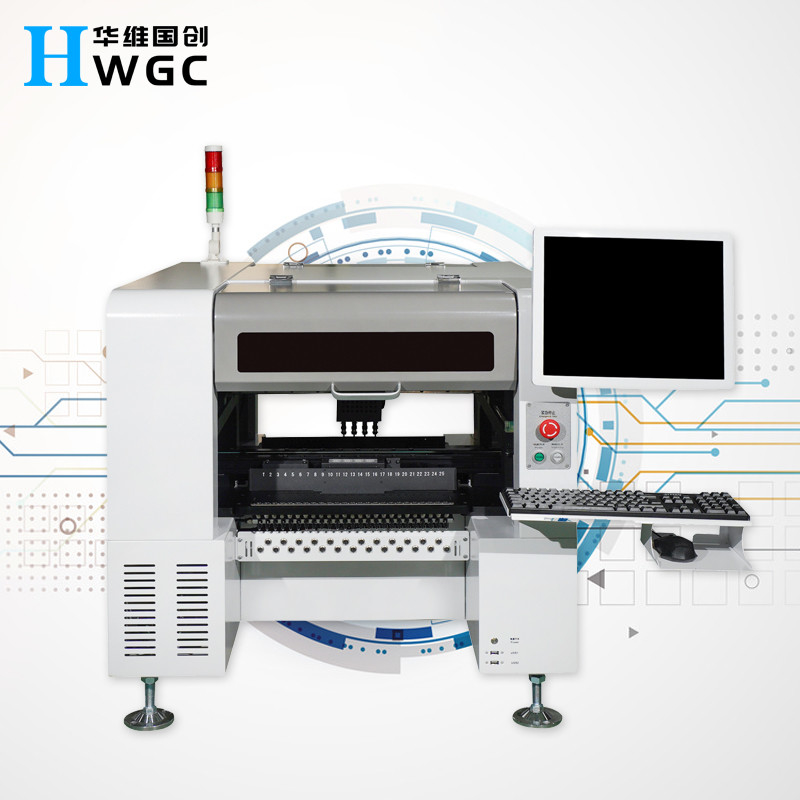

Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots

Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots

Products - PCB Pick And Place Machine
  • High Light

    desktop smt assembly machine

    ,

    bga smt assembly machine

    ,

    smt electronics pick and place machine

  • Condition
    Original New
  • Applicable Components
    0402--5050,SOP,TQFP,BGA
  • Usage
    LED Tube Large Qty Production,Circuit Board Assembly/LED Light Production
  • Name
    Pick Place Machine Smt Pcb,Place Machine\LED Mounter\led Assembly Machine,samsung CP45 Machine Pcb Support Pin
  • Application
    SMT PCB Assembly Production Line
  • Product Name
    Automatic SMD Capacitor Placement Machine
  • Type
    SMT Machine Related Products
  • Tape Width
    8mm,12mm,24mm
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    wood
  • Delivery Time
    1
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1

Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots

  • Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots
Get Price Contact Now

Affordable Desktop BGA Assembly Machine with Four Heads and 44 Feeder Slots SMT pick and place machine

What is the advantage of home electronic patch machine?


The benefits of a household SMD machine are numerous. Firstly, such a machine allows for quick and easy repairs to electronic devices. By having this machine at home, one can avoid the hassle of taking their devices to a professional repair shop and save both time and money. Secondly, a household SMD machine can provide a great learning opportunity for those interested in electronics. It allows individuals to take apart and repair devices at home, which can increase their knowledge and skills in this area. Another advantage of a household SMD machine is that it can be used to create custom electronic projects. This can be especially useful for hobbyists and those working on DIY projects. With this machine, one can easily create the circuits needed for their project and avoid the need to purchase expensive pre-made circuits. Lastly, a household SMD machine offers a level of convenience that cannot be matched by traditional methods. With a simple push of a button, one can quickly and easily repair or create electronic circuits without leaving the comfort of their own home. In conclusion, a household SMD machine offers many benefits that make it a valuable addition to any electronics enthusiast or hobbyist's collection. From quick repairs to custom projects, this machine provides a level of convenience and flexibility that cannot be found elsewhere.

This is the answer to the What is the advantage of home electronic patch machine? question. Thank you for your attention to Beijing Huawei Guochuang Electronic Technology Co., LTD., we are a high quality SMT equipment supplier, can undertake OEM,ODM, source manufacturers reliable, we are looking for a global agent, our contact information: 15010550359 zhai 15931673319 liu.







Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 0Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 1,Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 2Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 3Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 4Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 5Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 6Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 7Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 8

Affordable Desktop Bga Smt Assembly Machine With Four Heads And 44 Feeder Slots 9





Number of Placement Heads
4(high-accuracy)
Number of IC Trays
48
Number of Feeders
50/44(subject to 8mm feeder)
Positioning Accuracy
0.01mm
Repeated Mounting Accuracy
0.05mm
Mounting speed range of resistance
5000-8000Pcs/h capacitance components
Applicable Components
resistor,capacitor,chip,lamp bead 0201-30*30mm etc.
Supported Maximum Area of PCB
50*50mm-(50F)350*190mm /(44F)350*260mm
Feeders
electric feeder, pneumatic feeder,vibrating feeder, IC tray etc.
Recognition Devices
mark camera x1,fast recognition camera x4, high-precision camera x1
Maximum Height of Applicable Components
≤7mm
PCB Convey Mode
three-stage entry,automatic connection from left to right, automatic PCB positioning
Mark Positioning
manual / automatic
Programming Method
automatic programming after manually importing files of PCB coordinates
Control System
HuaweiGuochuang control system
Maximum Step Length of XY Axis
629mm*679mm
Tracks of XY Axis
linear motion guide + Screw driver
Motion Mode of XY Axis
intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm.
Control Computer
industrial control computer with Intel high-performance processor
Adjusting Method of Tracks
electric
Range of Nozzle Buffer
4.5mm
Maximum Step Length of Z Axis
20mm
Range of Angle for Components
±180°
Motor
AC Servo Motor series
Driver
high-speed DSP driver
Air Supply Requirements
oil water filter,≥ 50L,dust filter and air pressure stabilizer etc.
Vacuum Supply of Nozzle
vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure
0.5-0.7Mpa
OS
Independent research and development SMT intelligent OS based on Windows
PCB requires
3-5mm process edge in automatic mode
Vision Display
17-inch industrial control display
Cable
durable flexible cable(10 million times)
Power Supply
220V 50/60Hz
Average Power
600W
Machine Dimensions
desk machine 1140*900*900mm
vertical machine 900*1140*1340mm
Weight
(desk machine)210kg (vertical machine)280kg
