The HW-T4-44/50F is our most popular model with Vision. The HW-T4-44/50F offers technologically advanced features with 2
The SMT880 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT880 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Introduction
The machine SMT880 with 8 heads+10 cameras+80pcs feeders+Three stage track+Panasonic servo motor+Screw guide.
Feature
1. Three stage track.

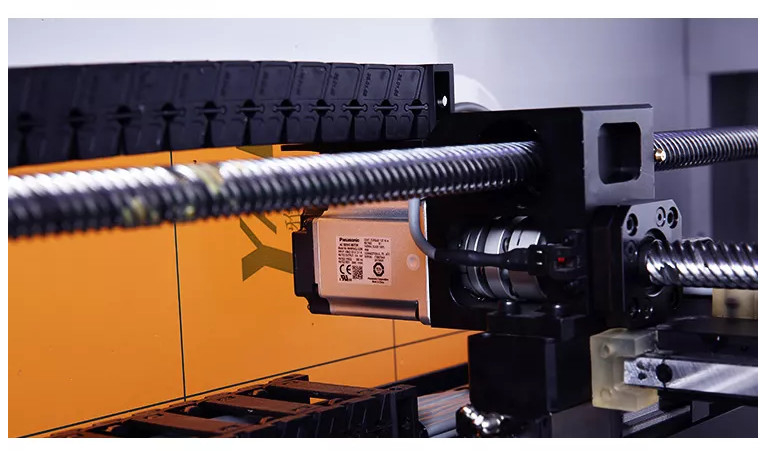

2. Panasonic servo motor.
3. Screw Guide.
4. 8 Heads+10 cameras +80 feeders.
Part List
1. P ick and place machine:1 Set
2. IC fixed support:4 Set(Four M5*8,Four M5*20 screw)
3. JUKI nozzle:20Pcs(502*4,503*6,504*6,505*3,506*1)
4. Solid alibrate nozzle:8 Pcs
5. Power wire:1 Pcs(A machine external power supply)
6. Fixed foot:4 Pcs(Three coats)
7. The keyboard and mouse:1 Set
8. Nozzle calibration inkpad:1 box
9. Lubricant:1 Pcs
10. I3 industrial control PC (with key):1 Set
11. 17 inch liquid crystal display:1 Set(Display*1, VGA line*1, power line*1)
12. Bracket:2 Set(Display bracket*1 keyboard and mouse bracket*1)
13. Conveyor connection line:2 Pcs
14. Camera parameter adjustment line:1 Pcs(Plug*3)
15. Handle:2 Pcs(M4*6 screw*6)
16. Seal ring of feeder:10 Pcs
Pick And Place Machine , Chip Mounter Surface Mounter , Smt Machine
porduct description
The HW-T4-44/50F is our most popular model with Vision. The HW-T4-44/50F offers technologically advanced features with 260mm x 400mm work area, 50 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.
System Features
* The highest quality with the most advanced equipment at a cost-effective solution
* Placement rates up to 7000 cph
* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...
Vision System
The HW-series vision pick and place systems is easy to programming for all operators, Intelligent and fast to operation
Feeders
Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.
