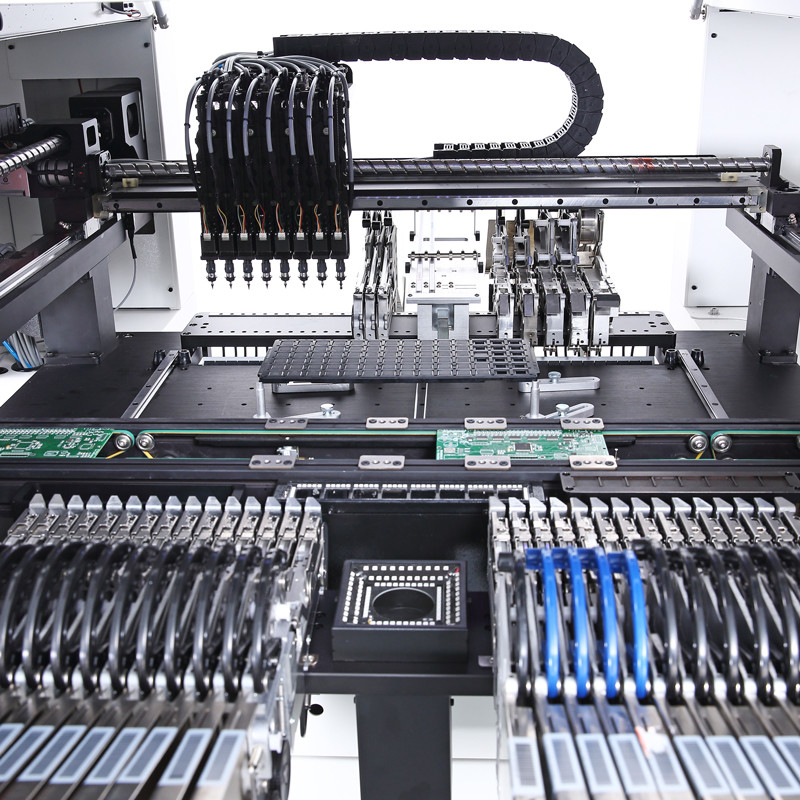

MultiFunctional SMD Pick And Place Machine HWGC 8 Heads SMT Line Equipment

MultiFunctional SMD Pick And Place Machine HWGC 8 Heads SMT Line Equipment

Products - SMD Pick and Place Machine
  • High Light

    MultiFunctional SMD Pick And Place Machine

    ,

    HWGCSMD Pick And Place Machine

    ,

    8 Heads SMT Line Equipment

  • Voltage
    220AC
  • Suppport
    Video Support
  • Max No. Of Feeders (8mm Tape)
    Up To 50 Tape Feeders
  • Max Board Size
    380mmX400mm
  • Vision System
    HWGC Vision
  • Vibratory Feeders
    Loose, Tube, Stick (frequency & Amplitude Control)
  • Place of Origin
    China
  • Brand Name
    HWGC
  • Certification
    CE
  • Model Number
    HW-T8-80F
  • Minimum Order Quantity
    1
  • Price
    usd+15000+pieces
  • Packaging Details
    Export wooden package
  • Delivery Time
    5-8work days
  • Payment Terms
    T/T
  • Supply Ability
    50+Pieces+Month

MultiFunctional SMD Pick And Place Machine HWGC 8 Heads SMT Line Equipment

  • MultiFunctional SMD Pick And Place Machine HWGC 8 Heads SMT Line Equipment
Get Price Contact Now

Online 8 Heads Multi-functional SMD Pick And Place Machine HW-DSQ800-120F With Vision Camera Assembly Line

Product Introduction

Introduction

The machine H4 with the ball screw and servo motor which is more stable and accurate than normal step motor, software designed and developed by our self. It is available in English. And we will keep updating it. Customers can get updated software regularly. Machine is of high quality,with at least one-year warranty, lifetime maintenance

Feature

SMT pick and place machine with 50 feeders +4 heads adopts Panasonic servo motor to ensure it is stable and accuracy 2. SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable 3. Four mounting heads work together, under 6 cameras inspection,come with 50 feeder positions will make machine working more

porduct description

The HW-T8-80F is our most popular model with Vision. The HW-T8-80F offers technologically advanced features with 260mm x 400mm work area, 50 single feeder positions (up to 120 feeders using bank feeders) where quick setup, easy of operation and high reliability are paramount.



System Features



* The highest quality with the most advanced equipment at a cost-effective solution

* Placement rates up to 7000 cph

* Accurately places a wide range of components including 0201, 0402, LED, BGA, QFN...




Placement rates 13000CPH
Accuracy ± .001” (0.02mm)
Voltage 220AC
Weight 800kg
Warranty 1 year
Vision System HWGC Vision
Vibratory Feeders Loose, tube, stick (frequency & amplitude control)


The HW vision System assist allows accurate placement of 0201, BGA, QFN, QFP,LED and a wide range of virtually all SMT components.
