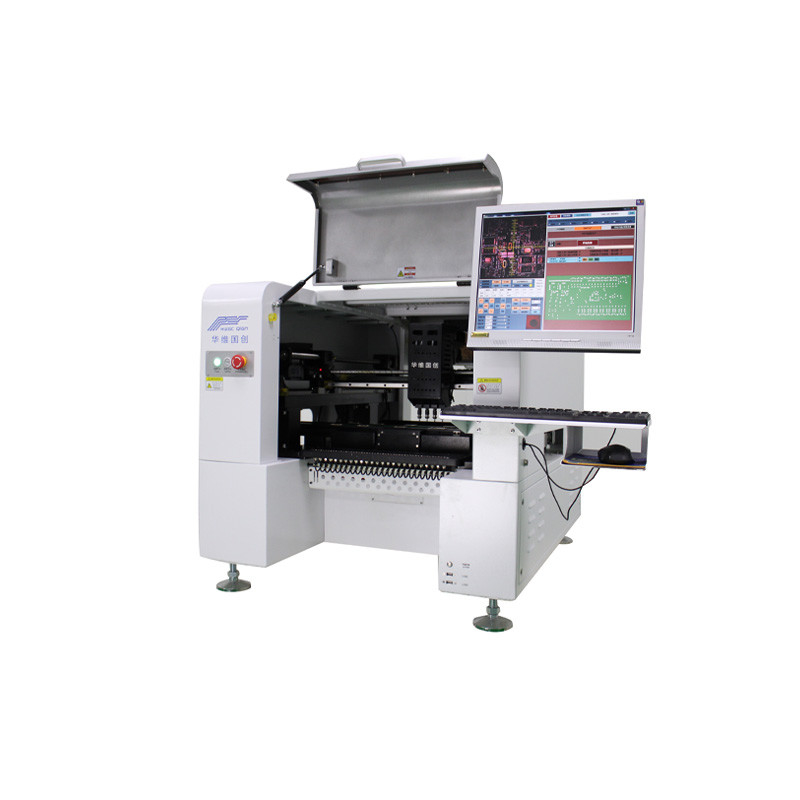

H4 LED Production Machine HWGC Circuit Board Pick And Place Machine

H4 LED Production Machine HWGC Circuit Board Pick And Place Machine

Products - SMD Pick and Place Machine
  • High Light

    H4 LED Production Machine

    ,

    OEM LED Production Machine

    ,

    HWGC Circuit Board Pick And Place Machine

  • Accuracy
    ± .001” (0.02mm）
  • Weight
    800kg
  • Suppport
    Video Support
  • UI
    The Best GUI (graphical User Interface) In Its Class Using Windows®-based Software Allows Programming In Minutes
  • Max Board Size
    380mmX400mm
  • Smallest Component Capability
    0201
  • Vision System
    HWGC Vision
  • Vibratory Feeders
    Loose, Tube, Stick (frequency & Amplitude Control)
  • Place of Origin
    China
  • Brand Name
    HWGC
  • Certification
    CE
  • Model Number
    HW-T8-80F
  • Minimum Order Quantity
    1
  • Price
    usd+15000+pieces
  • Packaging Details
    Export wooden package
  • Delivery Time
    5-8work days
  • Payment Terms
    T/T
  • Supply Ability
    50+Pieces+Month

H4 LED Production Machine HWGC Circuit Board Pick And Place Machine

  • H4 LED Production Machine HWGC Circuit Board Pick And Place Machine
Get Price Contact Now

Circuit Board Pick and Place Machine H4 LED Production Machine Electronic Components Maker

Yamaha Pneumatic feeder and Electricial feeder were adopted, sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.

Product Introduction

Introduction

The machine H4 with the ball screw and servo motor which is more stable and accurate than normal step motor, software designed and developed by our self. It is available in English. And we will keep updating it. Customers can get updated software regularly. Machine is of high quality,with at least one-year warranty, lifetime maintenance

Feature

1. SMT pick and place machine with 50 feeders +4 heads adopts Panasonic servo motor to ensure it is stable and accuracy 2. SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable 3. Four mounting heads work together, under 6 cameras inspection,come with 50 feeder positions will make machine working more

Part List

1. Pick and place machine:1Set 2.IC fixed support:4Sets (four M5*8, four M5*16) 3.JUKI nozzle:12Pcs (502*2,503*3,504*4,505*2,506*1) 4. Calibration suction nozzle:4PCS 5.Power wire:1PC 6.Fixed foot:4PCS (Diameter 20mm) 7.The keyboard and mouse:1Set 8.Nozzle calibration ink-pad:1Box 9.lubricant:1PC 10.Chassis key:1PC 11.PC:1Set 12.17-inch liquid crystal display:1Set
